5935-01-113-0741 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Alternate Parts: 0070009000, 007-0009-000, 2648706P001, M287543901, M28754/39-01, M2875439002, M28754/39-002, M2875439001, M28754/39-001, M28754390001, M28754-39-0001, M2875439000, M28754-39-000, MILC2875439, MIL-C-28754/39, 2648706P001, 9228295C, 922829-5C, 5935-01-113-0741, 01-113-0741, 5935011130741, 011130741
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 15, 1981 | 01-113-0741 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

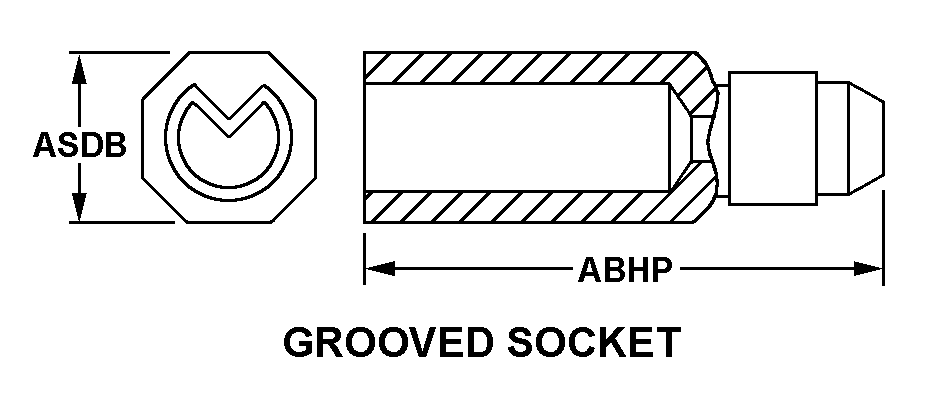

GROOVED SOCKET
Cross Reference | NSN 5935-01-113-0741
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 007-0009-000 | 05041 | DCX-CHOL ENTERPRISES, INC.DBA MASTERITE DIVISION |
| 2648706P001 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M28754/39-01 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M28754/39-002 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M28754/39-001 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M28754-39-0001 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M28754-39-000 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-C-28754/39 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 2648706P001 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 922829-5C | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-01-113-0741
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GROOVED SOCKET |
| OVERALL LENGTH | 0.160 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.190 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYAMIDE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PRESS FIT |
| TEST DATA DOCUMENT | 81349-MIL-C-28754 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-28754 TO 39 GOVERNMENT SPECIFICATION |
