Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-117-6272 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: X1103, X110-3, 191545, 6435471, 643547-1, 5836406, 583640-6, 5935-01-117-6272, 01-117-6272, 5935011176272, 011176272
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 19, 1981 | 01-117-6272 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB, STANDOFF TERMINALS

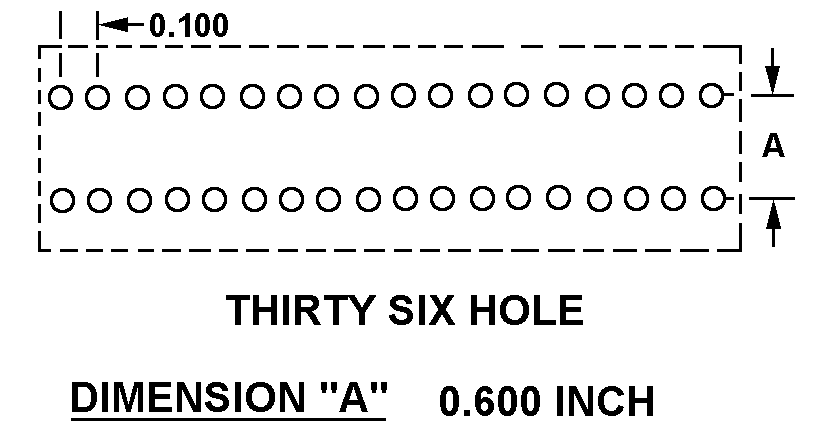

THIRTY SIX HOLE 0.600 INCH

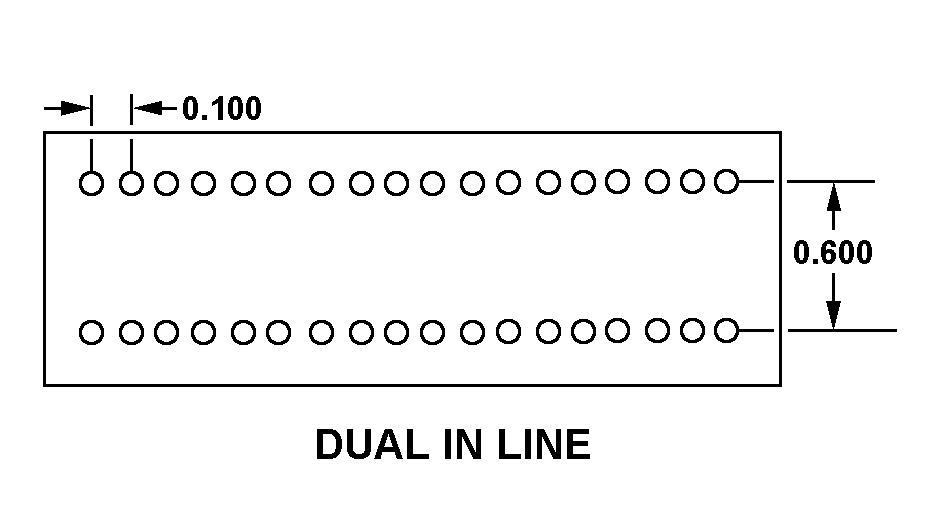

DUAL IN-LINE
Cross Reference | NSN 5935-01-117-6272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| X110-3 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 191545 | 10110 | SCIENTIFIC ATLANTA INC |
| 643547-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 583640-6 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-01-117-6272
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 36 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | TIN |
| BODY STYLE | PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 1.824 INCHES NOMINAL |
| TERMINAL LENGTH | 0.125 INCHES NOMINAL |
| OVERALL HEIGHT | 0.275 INCHES NOMINAL |
| OVERALL WIDTH | 0.470 INCHES NOMINAL |
| BODY MATERIAL | POLYAMIDE NYLON |
| TERMINAL TYPE AND QUANTITY | 36 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | THIRTY SIX HOLE 0.600 INCH |
| FEATURES PROVIDED | COMPONENT RETAINING DEVICE |
