Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-119-8391 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 77000020001, 7700-0020-001, 36579, 5935-01-119-8391, 01-119-8391, 5935011198391, 011198391
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 06, 1981 | 01-119-8391 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/TABS
TWO MOUNTING HOLES/SLOTS, DIAGONAL

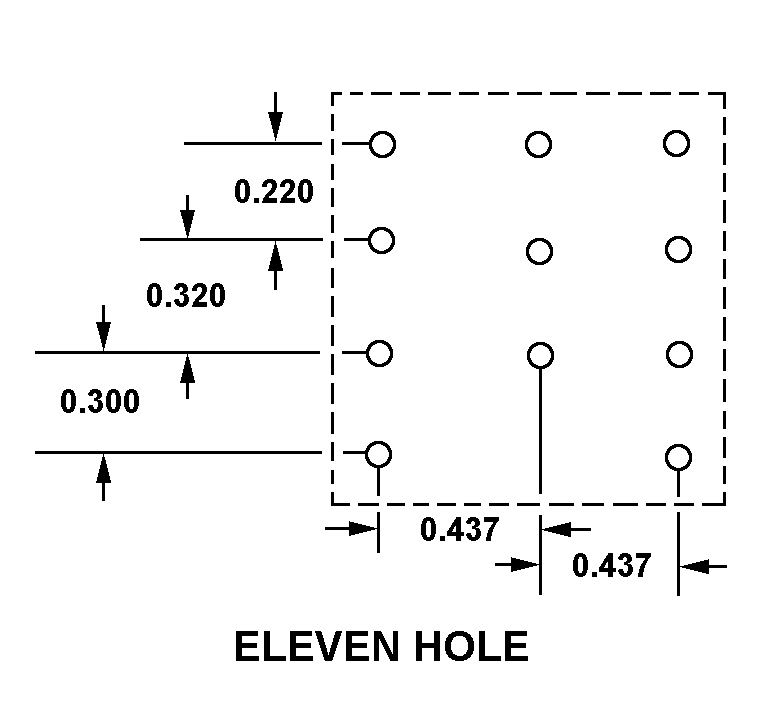

ELEVEN HOLE

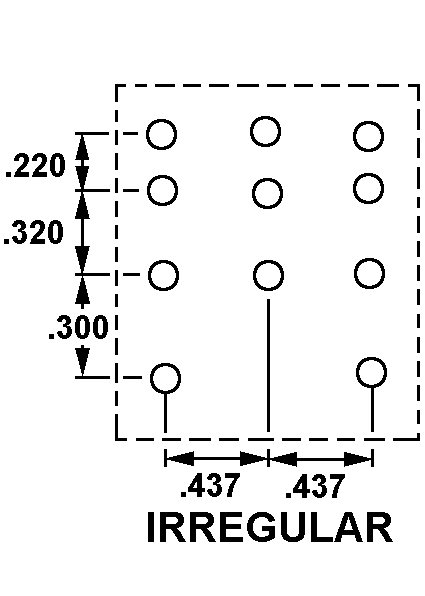

IRREGULAR
Cross Reference | NSN 5935-01-119-8391
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7700-0020-001 | 06032 | ANTENNA PRODUCTS CORPORATION |
| 36579 | 78290 | STRUTHERS-DUNN INC |
Technical Data | NSN 5935-01-119-8391
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 11 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/TABS |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.438 INCHES NOMINAL |
| OVERALL WIDTH | 1.484 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.297 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 11 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | B$Z |
| MOUNTING METHOD | UNTHREADED HOLE AND TERMINAL |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, DIAGONAL |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.687 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.875 INCHES NOMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | ELEVEN HOLE |
| POLARIZATION TYPE | CONTACT POSITION |
