Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-120-9101 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: ICK120G, ICK-120-G, 5935-01-120-9101, 01-120-9101, 5935011209101, 011209101
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 25, 1981 | 01-120-9101 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT

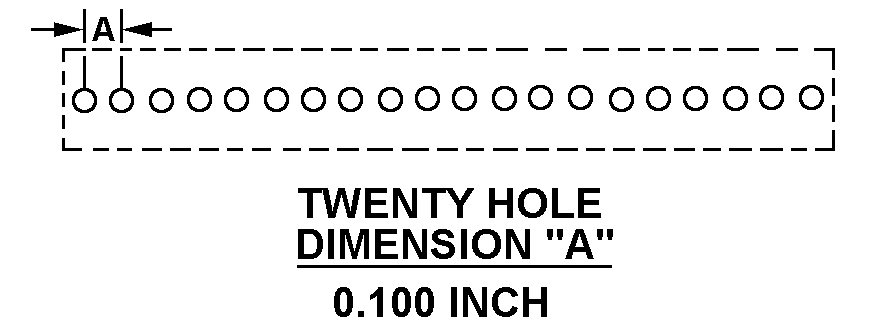

TWENTY HOLE DIMENSION "A" 0.100 INCH

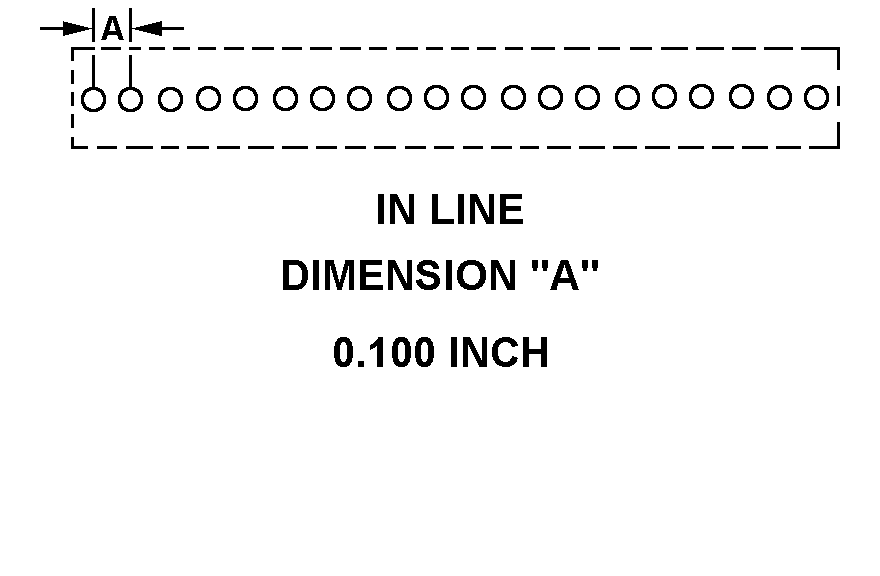

IN LINE
Cross Reference | NSN 5935-01-120-9101
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ICK-120-G | 55322 | SAMTEC INCDBA SAMTEC |
Technical Data | NSN 5935-01-120-9101
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 20 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| TERMINAL LENGTH | 0.135 INCHES NOMINAL |
| OVERALL HEIGHT | 0.300 INCHES NOMINAL |
| OVERALL WIDTH | 0.118 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 20 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | TWENTY HOLE DIMENSION "A" 0.100 INCH |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.020 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
