Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-123-4193 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: C100222, C10022-2, WA2555G, WA25-55G, 5935-01-123-4193, 01-123-4193, 5935011234193, 011234193
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 11, 1981 | 01-123-4193 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

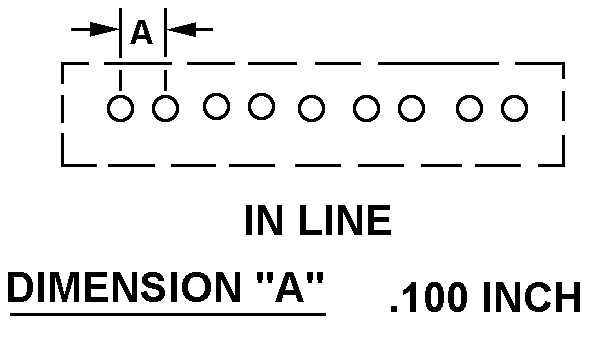

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
IN LINE
Cross Reference | NSN 5935-01-123-4193
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C10022-2 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| WA25-55G | 06776 | ROBINSON NUGENT INC |
Technical Data | NSN 5935-01-123-4193
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 25 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.735 INCHES NOMINAL |
| OVERALL WIDTH | 0.175 INCHES NOMINAL |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
