Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-123-5325 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 80592G3, 8059-2G3, 0N5083691, 0N508369-1, 5935-01-123-5325, 01-123-5325, 5935011235325, 011235325
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 14, 1981 | 01-123-5325 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB MOUNT

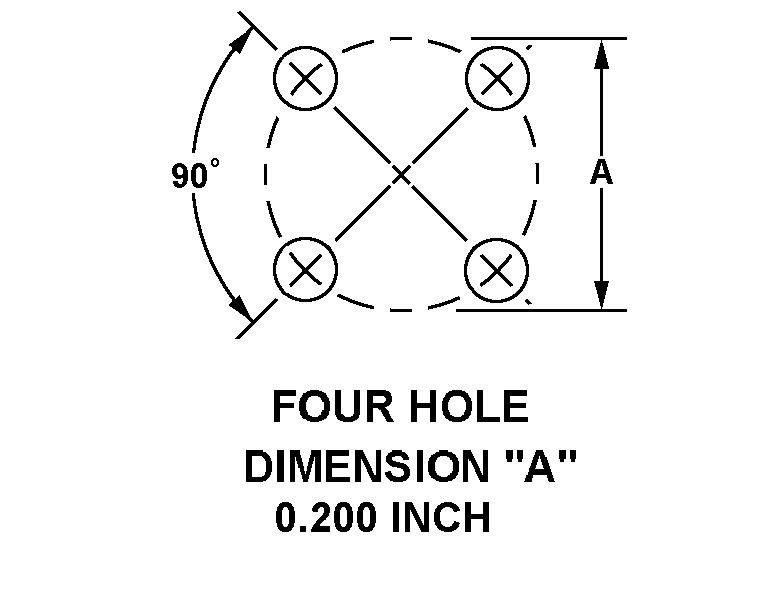

FOUR HOLE DIMENSION "A" 0.200 INCH
RECTANGULAR
Cross Reference | NSN 5935-01-123-5325
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8059-2G3 | 91506 | AUGAT INC |
| 0N508369-1 | 98230 | NATIONAL SECURITY AGENCY |
Technical Data | NSN 5935-01-123-5325
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | RECTANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | PCB MOUNT |
| OVERALL HEIGHT | 0.300 INCHES NOMINAL |
| OVERALL DIAMETER | 0.406 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.115 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 4 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | FOUR HOLE DIMENSION "A" 0.200 INCH |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.020 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
