5935-01-123-9863 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 479442000, 10172032, 10-17-2032, 204067800, 204-0678-00, 5935-01-123-9863, 01-123-9863, 5935011239863, 011239863
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 27, 1981 | 01-123-9863 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT
RECTANGULAR

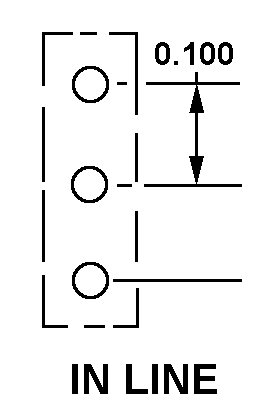

IN LINE
Cross Reference | NSN 5935-01-123-9863
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 479442000 | 04901 | BOONTON ELECTRONICS CORPORATIONDIV BOONTON ELECTRONICS |
| 10-17-2032 | 1UX99 | MOLEX INCORPORATEDDIV MOLEX CONNECTOR CORPORATION |
| 204-0678-00 | 80009 | TEKTRONIX, INC.DBA TEKTRONIX |
Technical Data | NSN 5935-01-123-9863
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 3 |
| MISSING CONTACT DESIGNATION | ALL CONTACT POSITIONS |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 0.358 INCHES NOMINAL |
| OVERALL HEIGHT | 0.490 INCHES NOMINAL |
| OVERALL WIDTH | 0.190 INCHES NOMINAL |
| BODY MATERIAL | POLYAMIDE NYLON |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | BODY THROUGH HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.358 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.190 INCHES NOMINAL |
