Part Details | QUICK DISCONNECT TERMINAL
5940-00-128-7242 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 10215913, 5940-00-128-7242, 00-128-7242, 5940001287242, 001287242
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 02, 1968 | 00-128-7242 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

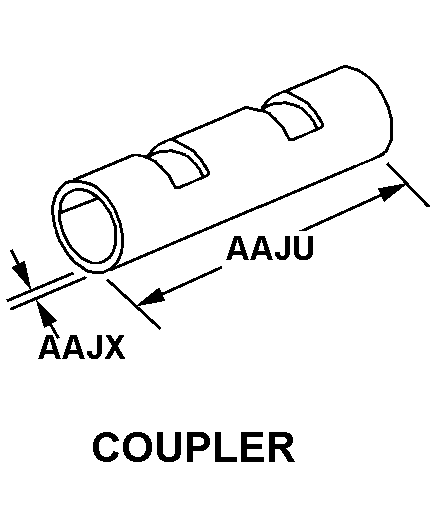

COUPLER
Cross Reference | NSN 5940-00-128-7242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10215913 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5940-00-128-7242
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | COUPLER |
| OVERALL LENGTH | 0.187 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
