Part Details | ELECTRICAL BINDING POST
5940-00-194-7735 A metallic postlike terminal, insulated or uninsulated, which is mounted on a board, chassis, panel, or other similar supporting surface. It is designed for frequent manual connections and disconnections of at least one electrical conductor, such as a wire, alligator clip, or spade lug. It may have additional tip jack features for the acceptance of banana plugs, phone tips, and the like. It may also have provisions for permanently attaching an electrical conductor(s). For items which require all electrical conductors to be permanently attached (soldered, crimped, and the like), see TERMINAL, STUD. See also JACK, TIP.
Alternate Parts: 975266, 97-5266, TM196, SCD4493, 5940-00-194-7735, 00-194-7735, 5940001947735, 001947735
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-194-7735 | 00883 ( POST, BINDING, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES
SHOULDERED STUD

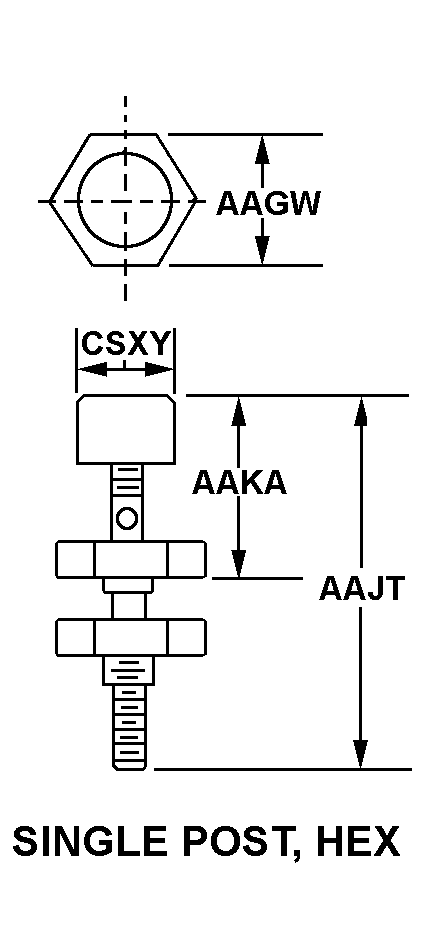

SINGLE POST, HEX
Cross Reference | NSN 5940-00-194-7735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 97-5266 | 31550 | HARRIS CORPORATIONDBA NIGHT VISION & COMMUNICATIONS |
| TM196 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| SCD4493 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5940-00-194-7735
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | SINGLE POST, HEX |
| WIDTH ACROSS FLATS | 0.438 INCHES |
| OVERALL HEIGHT | 1.813 INCHES |
| MAXIMUM HEIGHT ABOVE MOUNTING SURFACE | 1.000 INCHES |
| CAP OUTSIDE DIAMETER | 0.500 INCHES |
| MOUNTING METHOD STYLE | SHOULDERED STUD |
| MAJOR BUSHING DIAMETER | 0.281 INCHES |
| MAJOR BUSHING LENGTH | 0.250 INCHES |
| THREAD LENGTH | 0.375 INCHES |
| MOUNTING THREAD SERIES | UNF |
| MOUNTING THREAD DIAMETER | 0.190 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| ELECTRICAL INSULATION FEATURE | UNINSULATED CAPS WITH UNINSULATED STUDS |
