Part Details | QUICK DISCONNECT TERMINAL SET
5940-00-195-4495 A group of items which, when combined, conform with the definition of TERMINAL, LUG or TERMINAL, STUD. It also provides the additional feature of allowing the conductor accommodation facility(ies) of the lug or stud to be simply and rapidly separated from the mounted (fixed) position of the lug or stud without the use of tools. See also TERMINAL, LUG and TERMINAL, STUD.
Alternate Parts: 1600021020, 160-0021-020, 130095, 13009-5, 1238, 13009, 130095, 13009-5, 5940-00-195-4495, 00-195-4495, 5940001954495, 001954495
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 11, 1970 | 00-195-4495 | 61181 ( TERMINAL SET, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES
TAPER PLUG
STRAIGHT TWO HOLE

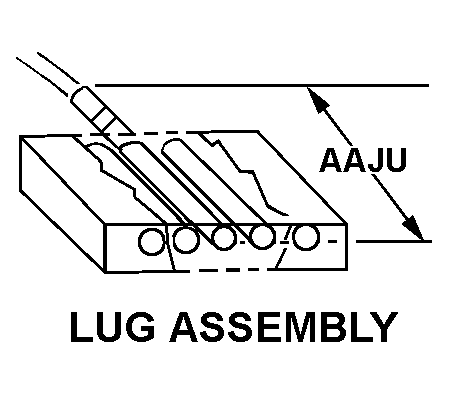

LUG ASSEMBLY
Cross Reference | NSN 5940-00-195-4495
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 160-0021-020 | 5U540 | DAYSTAR MFG CO INC |
| 13009-5 | 5U540 | DAYSTAR MFG CO INC |
| 1238 | 91883 | I MAIL-WELL CORP |
| 13009 | 98278 | TE CONNECTIVITY CORPORATIONDBA MICRODOT PRODUCTS |
| 13009-5 | 98278 | TE CONNECTIVITY CORPORATIONDBA MICRODOT PRODUCTS |
Technical Data | NSN 5940-00-195-4495
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | LUG ASSEMBLY |
| OVERALL LENGTH | 0.656 INCHES |
| MOUNTING METHOD STYLE | STRAIGHT TWO HOLE |
| MOUNTING HOLE DIAMETER | 0.067 INCHES |
| MOUNTING TONGUE WIDTH | 0.329 INCHES |
| MOUNTING FACILITY THICKNESS | 0.006 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.220 INCHES |
| DISTANCE FROM MOUNTING HOLE CENTER TO MOUNTING END | 0.125 INCHES |
| QUICK DISCONNECT STYLE | TAPER PLUG |
| MAJOR PLUG DIAMETER | 0.060 INCHES |
| MINOR PLUG DIAMETER | 0.047 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
