Part Details | QUICK DISCONNECT TERMINAL
5940-00-272-5009 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 3627, 501797, 5017-97, 32447, 5940-00-272-5009, 00-272-5009, 5940002725009, 002725009
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-272-5009 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

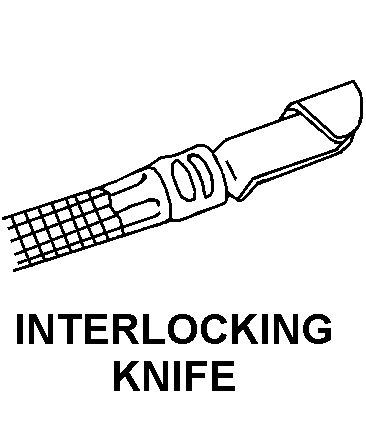

INTERLOCKING KNIFE
INTERLOCKING
Cross Reference | NSN 5940-00-272-5009
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3627 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
| 5017-97 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
| 32447 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5940-00-272-5009
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | INTERLOCKING |
| OVERALL LENGTH | 0.878 INCHES |
| MATERIAL THICKNESS | 0.030 INCHES |
| QUICK DISCONNECT STYLE | INTERLOCKING KNIFE |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | BLUE |
| FEATURES PROVIDED | MOUNTING HARDWARE |
