Part Details | CONDUCTOR SPLICE
5940-01-312-8063 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Alternate Parts: G7692984, G769298-4, D4360110, D-436-0110, 5940-01-312-8063, 01-312-8063, 5940013128063, 013128063
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 22, 1989 | 01-312-8063 | 00137 ( SPLICE, CONDUCTOR ) |
REFERENCE DRAWINGS & PICTURES

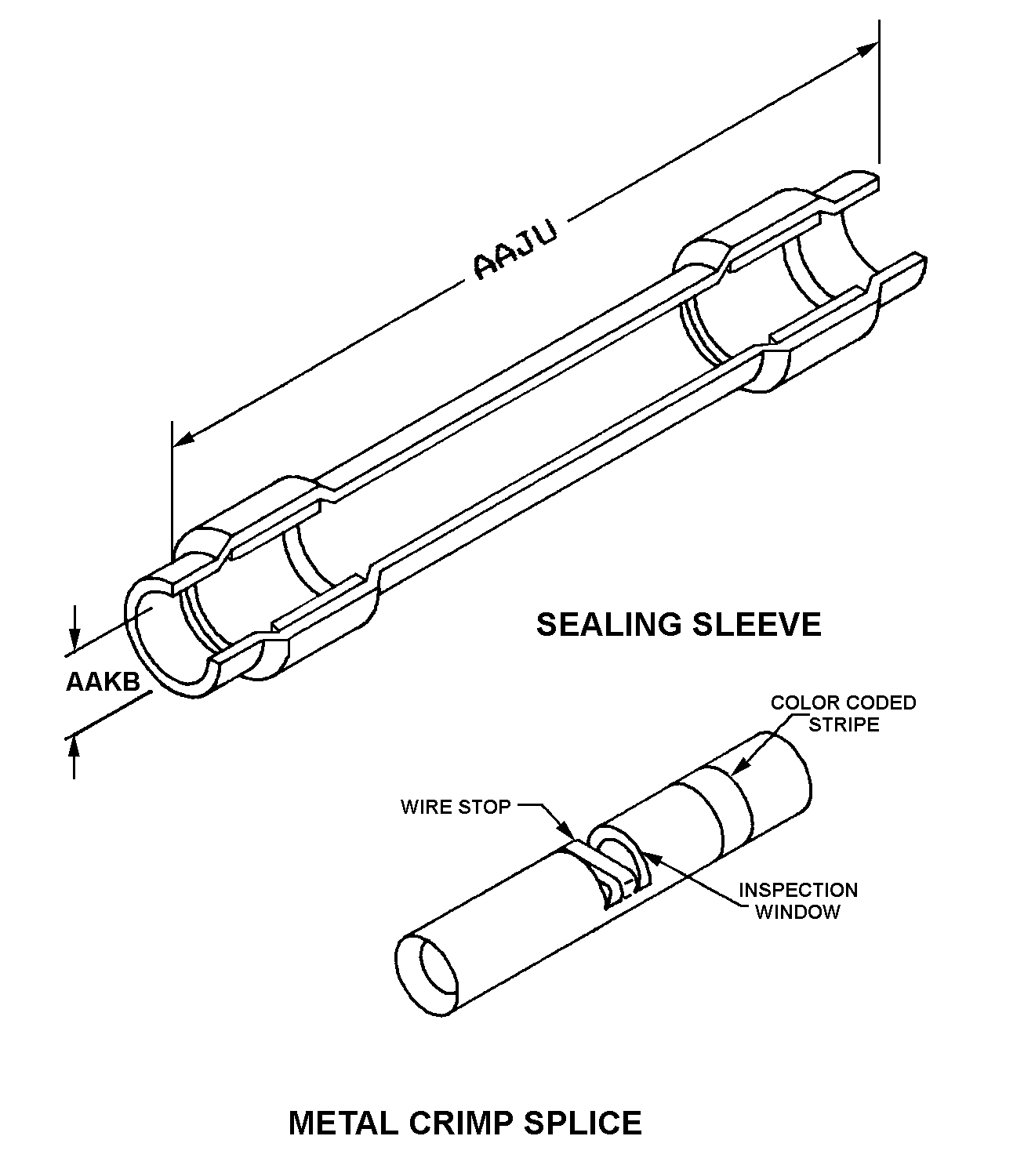

SEALING SLEEVE
Cross Reference | NSN 5940-01-312-8063
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G769298-4 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| D-436-0110 | 06090 | TE CONNECTIVITY CORPORATIONDBA RAYCHEM PRODUCT DIVISION |
Technical Data | NSN 5940-01-312-8063
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | SEALING SLEEVE |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | RED |
