Part Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-113-3415 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.
Alternate Parts: D5234946A, D5234-946A, D5234946A, D5234-946A, D5234946A, D5234-946A, 20588500701, 2058850-0701, 5955-00-113-3415, 00-113-3415, 5955001133415, 001133415
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 30, 1968 | 00-113-3415 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

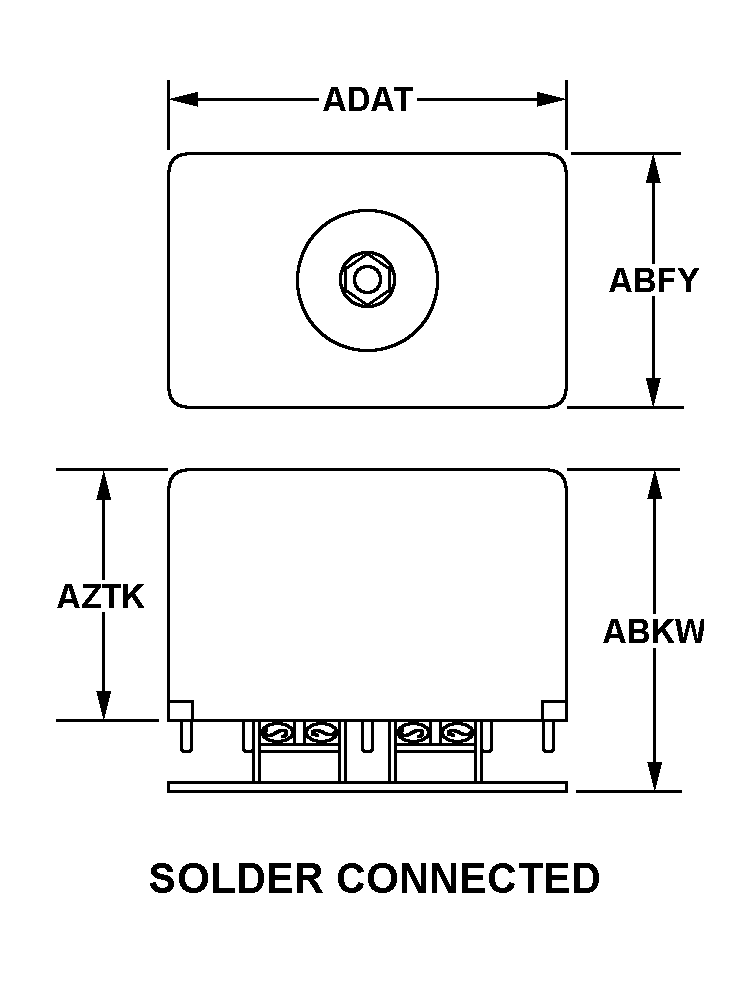

SOLDER CONNECTED
Cross Reference | NSN 5955-00-113-3415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D5234-946A | 20284 | AIMTRON SYSTEMS LLCDBA TARGET |
| D5234-946A | 12436 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| D5234-946A | 14844 | FREQUENCY ELECTRONICS, INC. |
| 2058850-0701 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5955-00-113-3415
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLDER CONNECTED |
| OVERALL DEPTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 3.930 INCHES NOMINAL |
| BODY WIDTH | 3.050 INCHES NOMINAL |
| INCLOSURE TYPE | INCLOSED |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
