Part Details | ELECTRON TUBE RETAINER
5960-00-265-7558 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: 7111487G1, 7111487G1, 5960-00-265-7558, 00-265-7558, 5960002657558, 002657558
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-265-7558 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

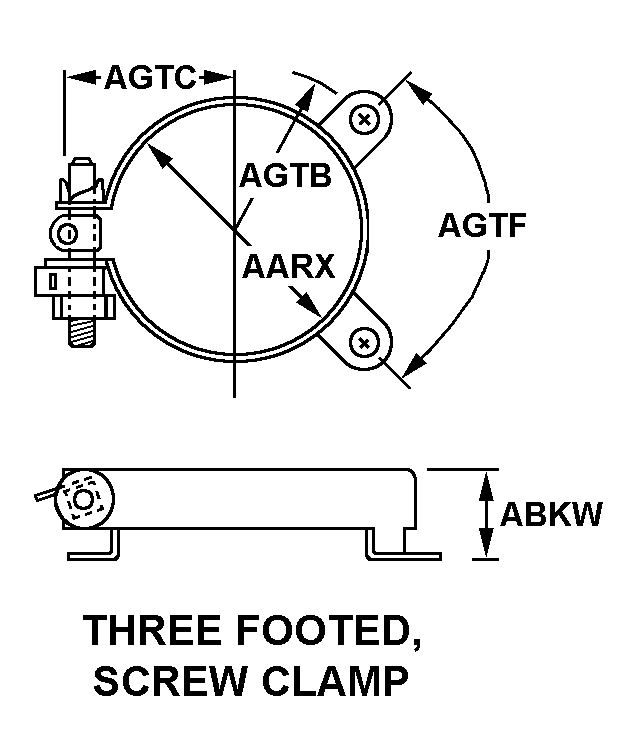

THREE FOOTED, SCREW CLAMP
Cross Reference | NSN 5960-00-265-7558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7111487G1 | 99971 | LOCKHEED MARTIN CORPNAVAL ELECTRONICS & SURVEILLANCE |
| 7111487G1 | 33173 | MPD, INC. |
Technical Data | NSN 5960-00-265-7558
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | THREE FOOTED, SCREW CLAMP |
| INSIDE DIAMETER | 2.177 INCHES MINIMUM AND 2.219 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.688 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 1.312 INCHES NOMINAL |
| ANGLE BETWEEN ADJACENT MOUNTING FACILITIES IN DEG | 0.0 |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | +2.177 TO +2.219 INCHES |
| SPECIAL FEATURES | 2ND UNTHD MTG HOLE DIA 0.189 IN. |
