Part Details | ELECTRON TUBE SHIELD
5960-00-272-9089 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: 187965, B187965, 5960-00-272-9089, 00-272-9089, 5960002729089, 002729089
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-272-9089 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

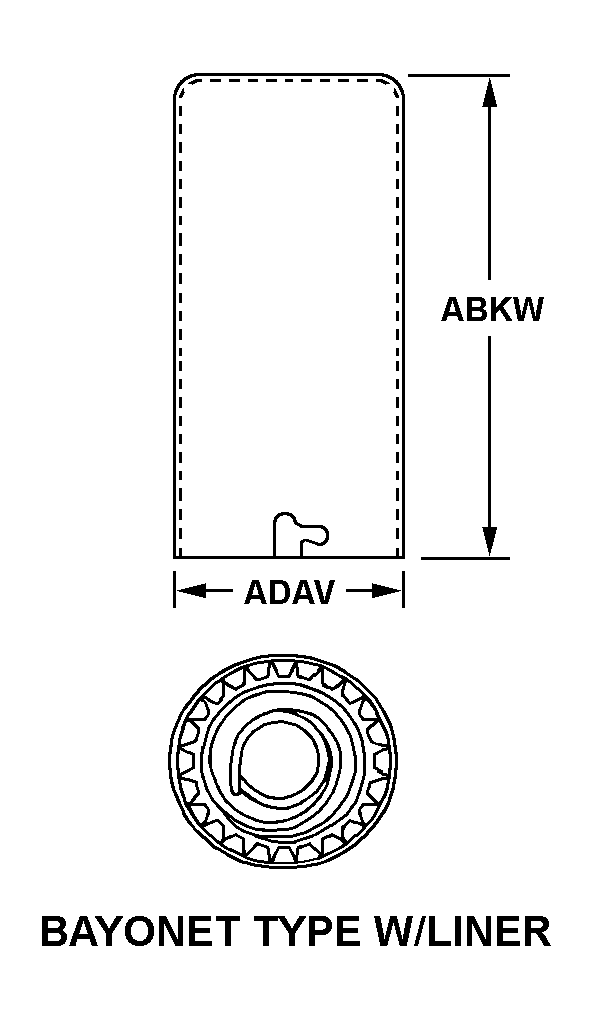

BAYONET TYPE W/LINER
Cross Reference | NSN 5960-00-272-9089
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 187965 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| B187965 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5960-00-272-9089
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | BAYONET TYPE W/LINER |
| OVERALL HEIGHT | 1.375 INCHES NOMINAL |
| OVERALL DIAMETER | 0.930 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | TWIST LOCK |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T5 1-2 5-1 |
