Part Details | ELECTRON TUBE RETAINER
5960-00-296-3175 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: DMB172A03, 5960-00-296-3175, 00-296-3175, 5960002963175, 002963175
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-296-3175 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

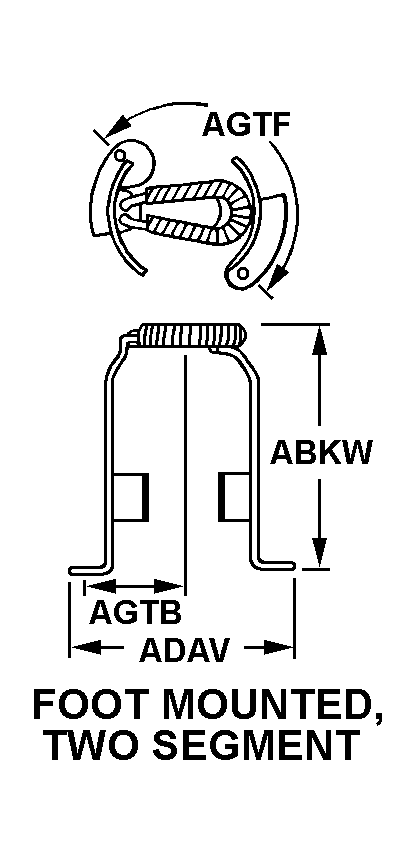

FOOT MOUNTED, TWO SEGMENT
Cross Reference | NSN 5960-00-296-3175
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DMB172A03 | 0ZW31 | MEASUREMENT SPECIALTIES, INC.DIV MEASUREMENT SPECIALITES INC. |
Technical Data | NSN 5960-00-296-3175
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE |
| STYLE DESIGNATOR | FOOT MOUNTED, TWO SEGMENT |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL DIAMETER | 1.125 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 0.437 INCHES NOMINAL |
| ANGLE BETWEEN ADJACENT MOUNTING FACILITIES IN DEG | 180.0 |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SPRING CLIP |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T5 1-2 |
