Part Details | ELECTRON TUBE SHIELD
5960-00-581-9102 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: P111821, P1-1182-1, 1519423027, 151-94-23-027, 1519413038, 151-94-13-038, 13D22884, 13D22028, 13D17779, TT66615063B, TT6-6615-06-3B, 7423378P1, 7411446PT1, 451801, 45180-1, 9159492, 5960-00-581-9102, 00-581-9102, 5960005819102, 005819102
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-581-9102 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

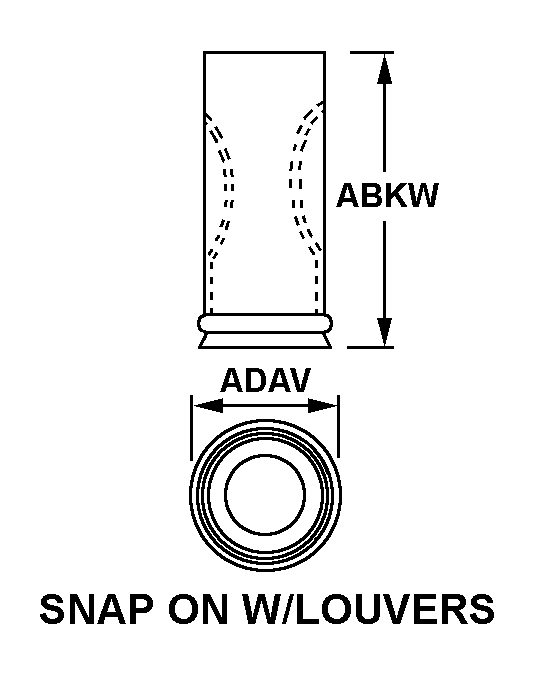

SNAP ON W/LOUVERS
Cross Reference | NSN 5960-00-581-9102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P1-1182-1 | 80249 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 151-94-23-027 | 71785 | CINCH CONNECTORS, INC. |
| 151-94-13-038 | 71785 | CINCH CONNECTORS, INC. |
| 13D22884 | 71785 | CINCH CONNECTORS, INC. |
| 13D22028 | 71785 | CINCH CONNECTORS, INC. |
| 13D17779 | 71785 | CINCH CONNECTORS, INC. |
| TT6-6615-06-3B | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 7423378P1 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 7411446PT1 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 45180-1 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| 9159492 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5960-00-581-9102
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | SNAP ON W/LOUVERS |
| OVERALL HEIGHT | 1.687 INCHES NOMINAL |
| OVERALL DIAMETER | 1.125 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SNAP FASTENER |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T6 1-2 6-1 |
