Part Details | ELECTRON TUBE SHIELD
5960-00-630-6630 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: 9053063, 9053063, 5960-00-630-6630, 00-630-6630, 5960006306630, 006306630
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 12, 1969 | 00-630-6630 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

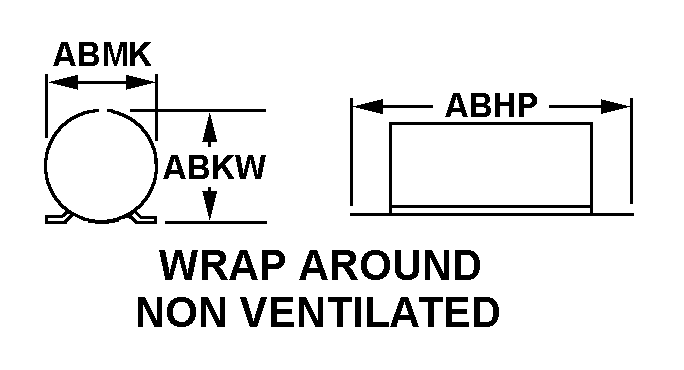

WRAP AROUND NON VENTILATED
Cross Reference | NSN 5960-00-630-6630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9053063 | 27361 | BURKE PRODUCTS, INC. |
| 9053063 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5960-00-630-6630
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | GB000 ANY ACCEPTABLE |
| STYLE DESIGNATOR | WRAP AROUND NON VENTILATED |
| OVERALL LENGTH | 1.359 INCHES MINIMUM AND 1.391 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.339 INCHES MINIMUM AND 0.352 INCHES MAXIMUM |
| OVERALL WIDTH | 0.339 INCHES MINIMUM AND 0.352 INCHES MAXIMUM |
