Part Details | ELECTRON TUBE SHIELD
5960-00-686-7952 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: T33031H, T3-3031H, 9113765, 5960-00-686-7952, 00-686-7952, 5960006867952, 006867952
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-686-7952 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

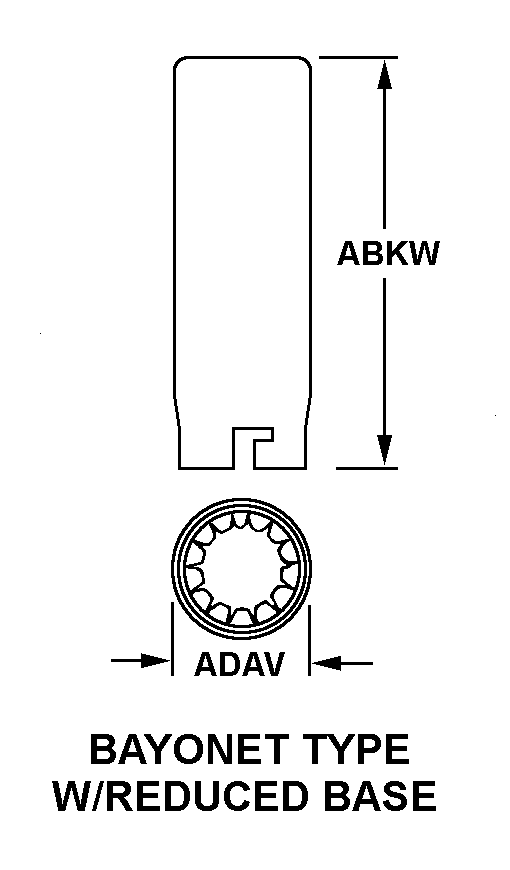

BAYONET TYPE W/REDUCED BASE
Cross Reference | NSN 5960-00-686-7952
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T3-3031H | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 9113765 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5960-00-686-7952
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | BAYONET TYPE W/REDUCED BASE |
| OVERALL HEIGHT | 1.563 INCHES NOMINAL |
| OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T3 3-2 |
| FEATURES PROVIDED | LINER |
