Part Details | KNOB INSULATOR
5970-00-224-5227 An insulator of generally cylindrical shape which is designed to be attached to a rigid structure.
Alternate Parts: 6651, 0, A101436, G3027541, G302754-1, 6631, G3027541, G302754-1, 5970-00-224-5227, 00-224-5227, 5970002245227, 002245227
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-224-5227 | 18283 ( INSULATOR, KNOB ) |

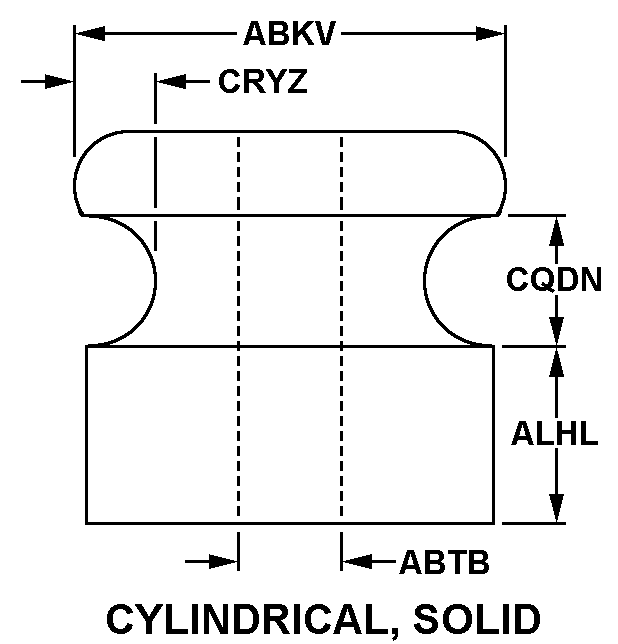

REFERENCE DRAWINGS & PICTURES
CYLINDRICAL, SOLID
Cross Reference | NSN 5970-00-224-5227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6651 | 74368 | DELTA-STAR ELECTRIC DIVISION THOMASWORKS OF PORTER H K CO OF DELAWARE |
| 0 | 74368 | DELTA-STAR ELECTRIC DIVISION THOMASWORKS OF PORTER H K CO OF DELAWARE |
| A101436 | 74368 | DELTA-STAR ELECTRIC DIVISION THOMASWORKS OF PORTER H K CO OF DELAWARE |
| G302754-1 | 3H255 | GENERAL ELECTRIC COWIRE AND CABLE PLANT |
| 6631 | 26042 | GRAYBAR ELECTRIC COMPANY, INC. |
| G302754-1 | 01714 | LUCENT TECHNOLOGIES INCADVANCED TECHNOLOGY SYSTEMS |
Technical Data | NSN 5970-00-224-5227
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL, SOLID |
| OUTSIDE DIAMETER | 3.000 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN AND MOUNTING BASE PORCELAIN |
| SURFACE TREATMENT AND LOCATION | MOUNTING BASE GLAZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
