Part Details | FEEDTHRU INSULATOR
5970-00-228-4163 An insulator which is specifically designed to provide for the passage of electrical conductors through such items as panels, bulkheads, walls, and the like. It consists of two or more insulators, including one or more studs fed through the items in such a way as to be used as conductors. The studs may be used for mounting. See also INSULATOR, BOWL; and TERMINAL, FEEDTHRU, INSULATED.
Alternate Parts: MILI2326414, MIL-I-23264/14, NL422W36048, NL422W36-048, 37016, 61025, EBI250A, 5970-00-228-4163, 00-228-4163, 5970002284163, 002284163
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-228-4163 | 18284 ( INSULATOR, FEEDTHRU ) |

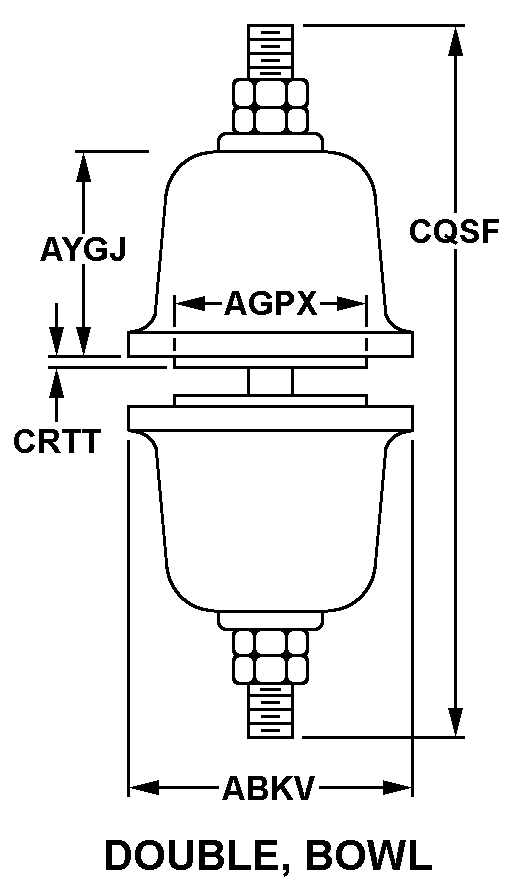

REFERENCE DRAWINGS & PICTURES
DOUBLE, BOWL
Cross Reference | NSN 5970-00-228-4163
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-I-23264/14 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| NL422W36-048 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 37016 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 61025 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| EBI250A | 83762 | SPAULDING COMPOSITES COMPANY INC.DBA MYKROY/MYCALEX DIV |
Technical Data | NSN 5970-00-228-4163
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE, BOWL |
| OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| SHOULDER OUTSIDE DIAMETER | 1.562 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 1.625 INCHES NOMINAL |
| CENTER STUD LENGTH | 6.000 INCHES NOMINAL |
| SHOULDER DEPTH | 0.047 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL CERAMIC, MIL-I-10, GRADE L422 |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | CENTER STUD UNC |
| SCREW THREAD DIAMETER AND LOCATION | A0.250 CENTER STUD INCHES |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 20 CENTER STUD |
| THREAD CLASS AND LOCATION | 2A CENTER STUD |
| THREAD LENGTH AND LOCATION | A1.500 CENTER STUD INCHES |
| ELECTRICAL TERMINATION QUANTITY | 2 |
