Part Details | WASHER INSULATOR
5970-00-248-1765 An insulator that is essentially thin and flat, with one through hole centrally located. The general shape may vary by the addition of features such as beveled edges, indented surfaces, through hole keys, and/or peripheral flats. The thickness measured between the two parallel bearing surfaces must not exceed 25 percent of the outside diameter or the shortest distance between peripheral flats. The thickness measured between the two parallel bearing surfaces must not exceed 25 percent of the outside diameter or the shortest distance between peripheral flats. Excludes items with more than one hole. See also INSULATOR, DISK; INSULATOR, BEAD; INSULATOR, BUSHING; and INSULATOR, PLATE
Alternate Parts: C135621, C13562-1, C481901, C48190-1, C135621, C13562-1, C481901, C48190-1, 5970-00-248-1765, 00-248-1765, 5970002481765, 002481765
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 03, 1969 | 00-248-1765 | 18294 ( INSULATOR, WASHER ) |

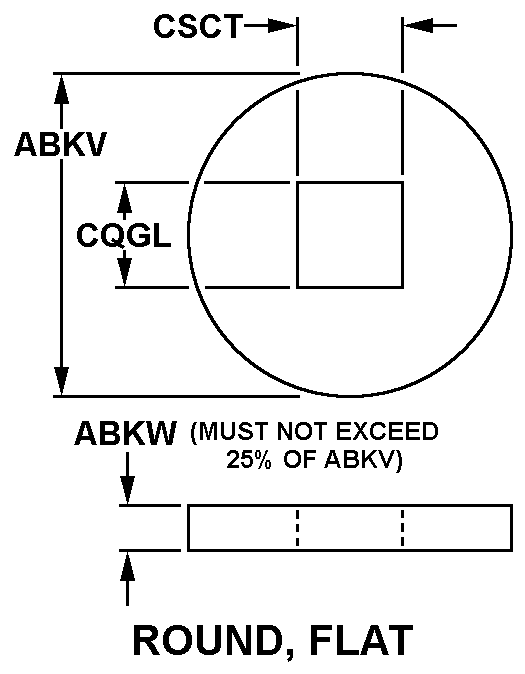

REFERENCE DRAWINGS & PICTURES
ROUND, FLAT
Cross Reference | NSN 5970-00-248-1765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C13562-1 | 14237 | CONTINENTAL ELECTRIC CO INC |
| C48190-1 | 14237 | CONTINENTAL ELECTRIC CO INC |
| C13562-1 | 7H468 | CONTINENTAL ELECTRIC MOTORS INC. |
| C48190-1 | 7H468 | CONTINENTAL ELECTRIC MOTORS INC. |
Technical Data | NSN 5970-00-248-1765
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND, FLAT |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.125 INCHES NOMINAL |
| FIRST HOLE LENGTH | 0.812 INCHES MINIMUM AND 0.817 INCHES MAXIMUM |
| FIRST HOLE WIDTH | 0.687 INCHES MINIMUM AND 0.692 INCHES MAXIMUM |
| SPECIAL FEATURES | RADIUS EACH END CENTER HOLE MINUS 0.405 PLUS 0.411 |
