Part Details | BOWL INSULATOR
5970-00-253-6741 An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces.
Alternate Parts: PW424, PW42-4, PW424, PW42-4, 306, 61638, RE61A340TYPE61638, 190693000, 190-6930-00, 108800, 1088-00, 5970-00-253-6741, 00-253-6741, 5970002536741, 002536741
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-253-6741 | 18300 ( INSULATOR, BOWL ) |
REFERENCE DRAWINGS & PICTURES

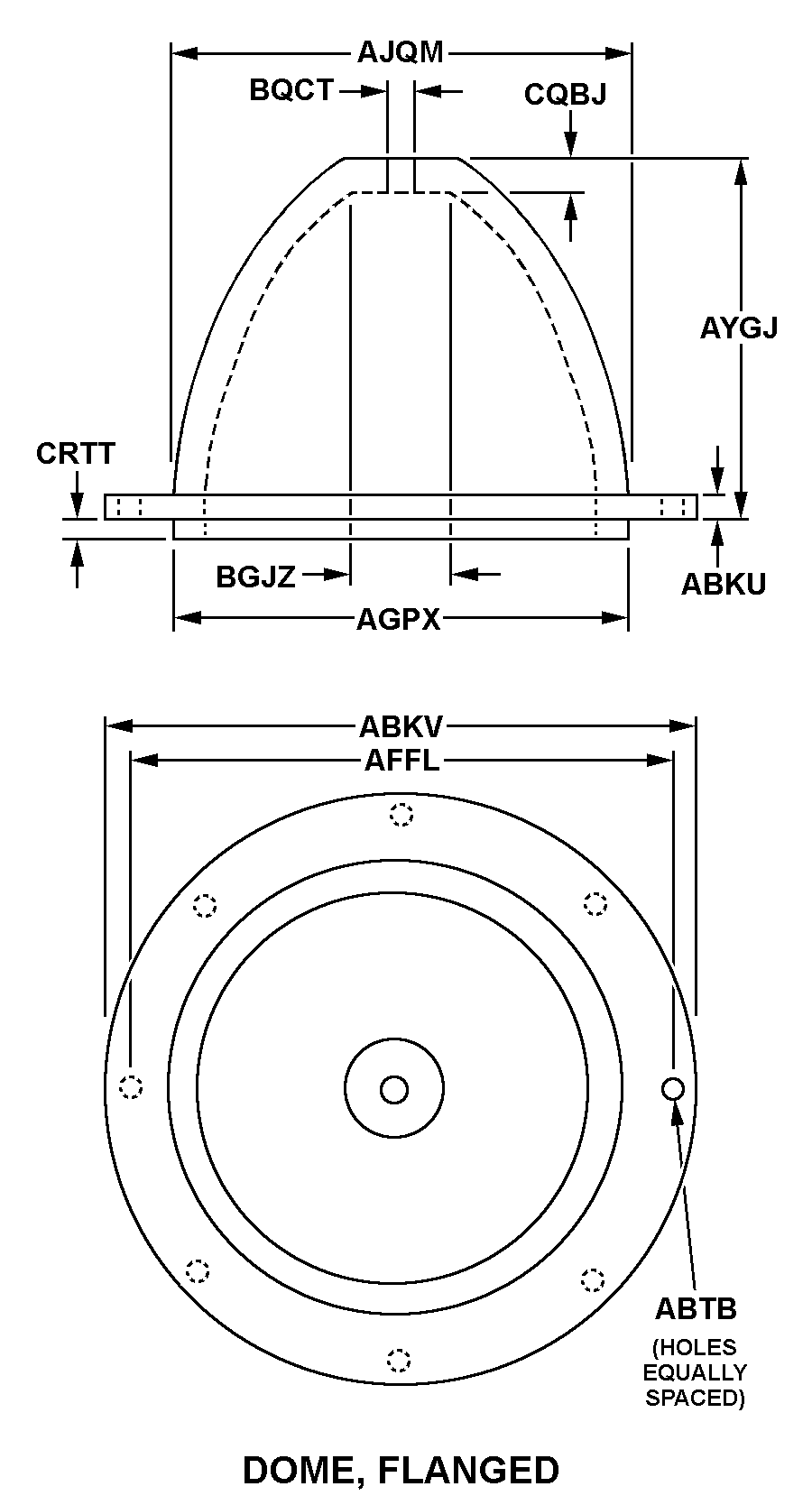

DOME, FLANGED
Cross Reference | NSN 5970-00-253-6741
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PW42-4 | 85271 | DURO-TEST CORP |
| PW42-4 | 06RZ4 | DURO-TEST LIGHTING |
| 306 | 81143 | ISOLANTITE MANUFACTURING COMPANY INC |
| 61638 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| RE61A340TYPE61638 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 190-6930-00 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 1088-00 | 72656 | TITAN CORP THEINDIANA GENERAL FERRITE COMPONENT |
Technical Data | NSN 5970-00-253-6741
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOME, FLANGED |
| FLANGE THICKNESS | 0.500 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 4.625 INCHES NOMINAL |
| BOWL DIAMETER | 3.750 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 2.687 INCHES NOMINAL |
| BASE INSIDE DIAMETER | 3.125 INCHES NOMINAL |
| TOP HOLE DIAMETER | 0.563 INCHES NOMINAL |
| SHOULDER DEPTH | 0.094 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, MIL-I-10 |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |
