Part Details | BUSHING INSULATOR
5970-00-270-1050 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Alternate Parts: 118351, 1183-51, 5970-00-270-1050, 00-270-1050, 5970002701050, 002701050
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 28, 1973 | 00-270-1050 | 18301 ( INSULATOR, BUSHING ) |

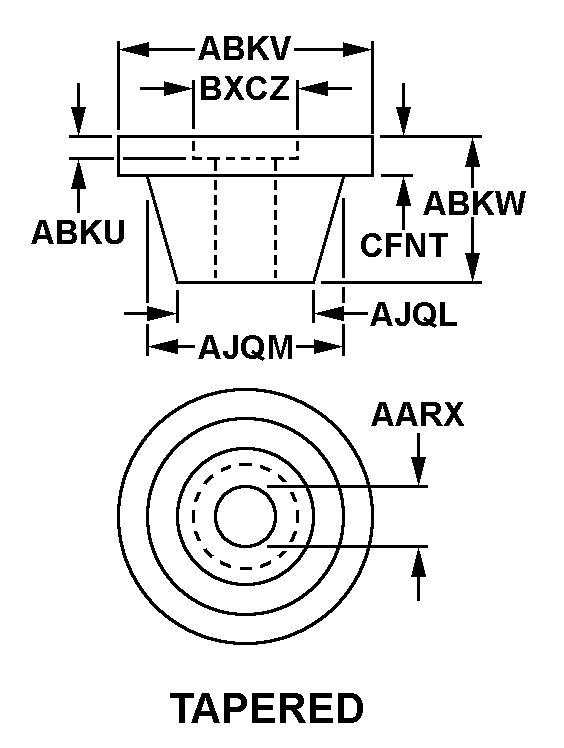

REFERENCE DRAWINGS & PICTURES
TAPERED
Cross Reference | NSN 5970-00-270-1050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1183-51 | 30242 | AVTECHTYEE, INC.DBA A DIVISION OF TRANSDIGM GROUP |
Technical Data | NSN 5970-00-270-1050
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TAPERED |
| INSIDE DIAMETER | 0.156 INCHES NOMINAL |
| FLANGE THICKNESS | 0.050 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.200 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 0.281 INCHES NOMINAL |
