Part Details | PIN INSULATOR
5970-00-280-4948 An insulator which is grooved for guiding purposes and which is specifically designed to be mounted on a crossarm pin or bracket pin.
Alternate Parts: D87949, D879-49, 10, 5970-00-280-4948, 00-280-4948, 5970002804948, 002804948
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-280-4948 | 18289 ( INSULATOR, PIN ) |

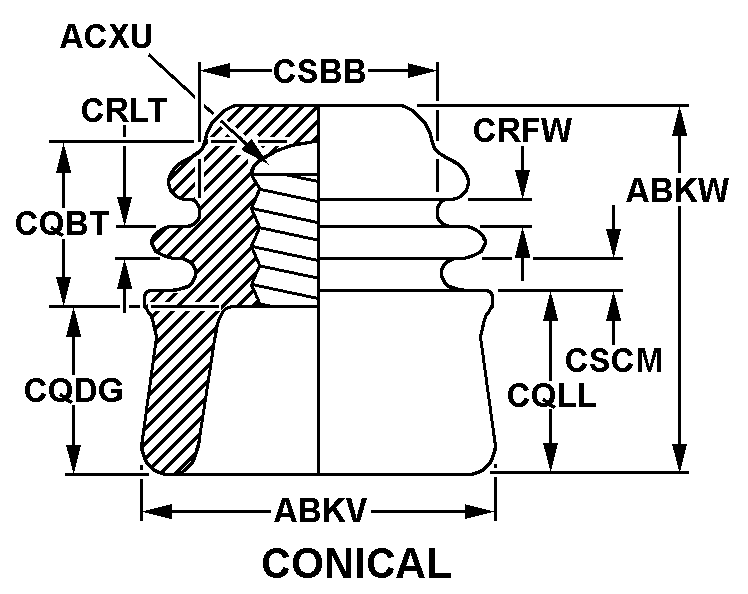

REFERENCE DRAWINGS & PICTURES
CONICAL
Cross Reference | NSN 5970-00-280-4948
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D879-49 | 81346 | AMERICAN SOCIETY FOR TESTING ANDMATERIALS |
| 10 | 77048 | OWENS-ILLINOIS INCGLASS CONTAINER DIV |
Technical Data | NSN 5970-00-280-4948
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONICAL |
| OUTSIDE DIAMETER | 2.438 INCHES NOMINAL |
| OVERALL HEIGHT | 3.250 INCHES NOMINAL |
| PINHOLE DIAMETER | 1.000 INCHES NOMINAL |
| PIN HOLE DEPTH | 1.563 INCHES NOMINAL |
| SKIRT LENGTH | 1.375 INCHES NOMINAL |
| SECOND DISTANCE BETWEEN CONDUCTOR GROOVES | 1.594 INCHES NOMINAL |
| FIRST RADIAL GROOVE WIDTH | 0.500 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 0.219 INCHES NOMINAL |
| RADIAL GROOVE DIAMETER | 1.716 INCHES NOMINAL |
| SECOND RADIAL GROOVE WIDTH | 0.500 INCHES NOMINAL |
