Part Details | BUSHING INSULATOR
5970-00-281-0961 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Alternate Parts: D22561, D225-61, 5970-00-281-0961, 00-281-0961, 5970002810961, 002810961
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-281-0961 | 18301 ( INSULATOR, BUSHING ) |

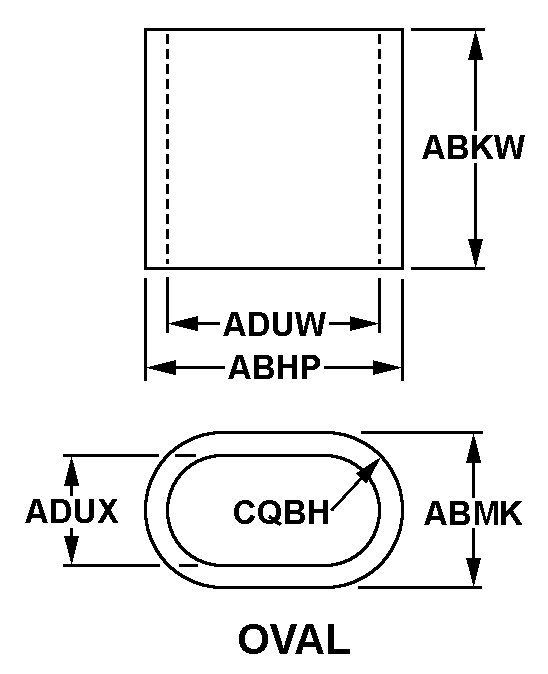

REFERENCE DRAWINGS & PICTURES
OVAL
Cross Reference | NSN 5970-00-281-0961
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D225-61 | 46175 | PEERLESS-WINSMITH, INC.DBA PEERLESS WINSMITH |
Technical Data | NSN 5970-00-281-0961
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OVAL |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.719 INCHES NOMINAL |
| OVERALL WIDTH | 0.438 INCHES NOMINAL |
| CENTER HOLE LENGTH | 0.312 INCHES NOMINAL |
| CENTER HOLE WIDTH | 0.250 INCHES NOMINAL |
| FIRST END RADIUS | 0.250 INCHES NOMINAL |
