Part Details | INSULATOR ASSEMBLY
5970-00-284-7582 Two or more insulators on a common mounting or mounted on each other. Do not use for single complete feedthru insulators (double bowl type) which are termed INSULATOR, FEEDTHRU regardless of complexity.
Alternate Parts: CC51, CC51, 5970-00-284-7582, 00-284-7582, 5970002847582, 002847582
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-7582 | 00220 ( INSULATOR ASSEMBLY ) |
REFERENCE DRAWINGS & PICTURES

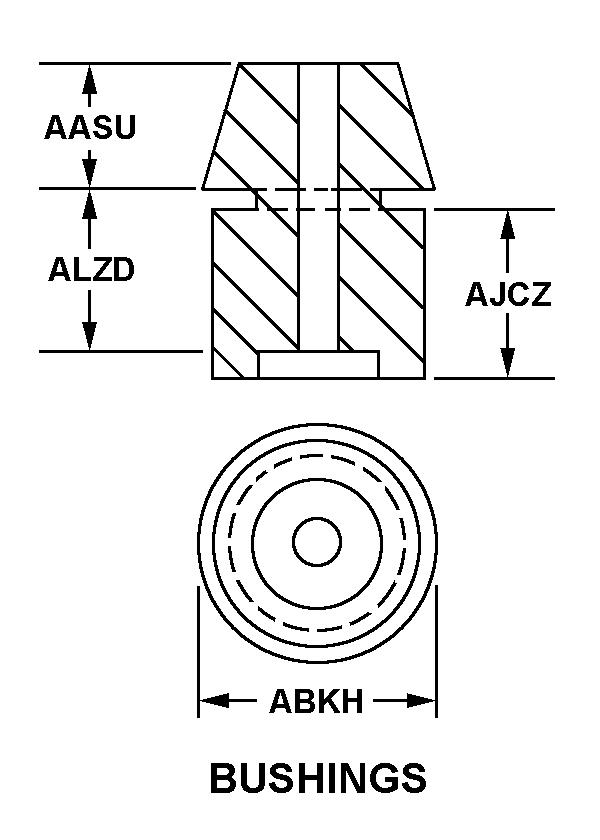

BUSHINGS
Cross Reference | NSN 5970-00-284-7582
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CC51 | 05690 | BARKER & WILLIAMSON |
| CC51 | 4W146 | SMART MACHINES, INC.DBA BARKER & WILLIAMSON |
Technical Data | NSN 5970-00-284-7582
| Characteristic | Specifications |
|---|---|
| INSULATOR QUANTITY | 2 |
| STYLE DESIGNATOR | BUSHINGS |
| BUSHING DIAMETER | 5.750 INCHES NOMINAL |
| MOUNTING MATERIAL | ALUMINUM |
| MOUNTING CONFIGURATION | ONE 9/32 IN. DIA MTG HOLE |
| SPECIAL FEATURES | DEMISNSIONS: LEGEND - L 6.750 INCH, LEGEND - H 1.250 INCH |
