Part Details | CLEAT INSULATOR
5970-00-284-8093 An insulator of a generally rectangular shape which is designed to be attached to a rigid structure. It consists of two separate parts. For items of a generally cylindrical shape, see INSULATOR, KNOB.
Alternate Parts: 102489, 5970-00-284-8093, 00-284-8093, 5970002848093, 002848093
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-8093 | 18282 ( INSULATOR, CLEAT ) |

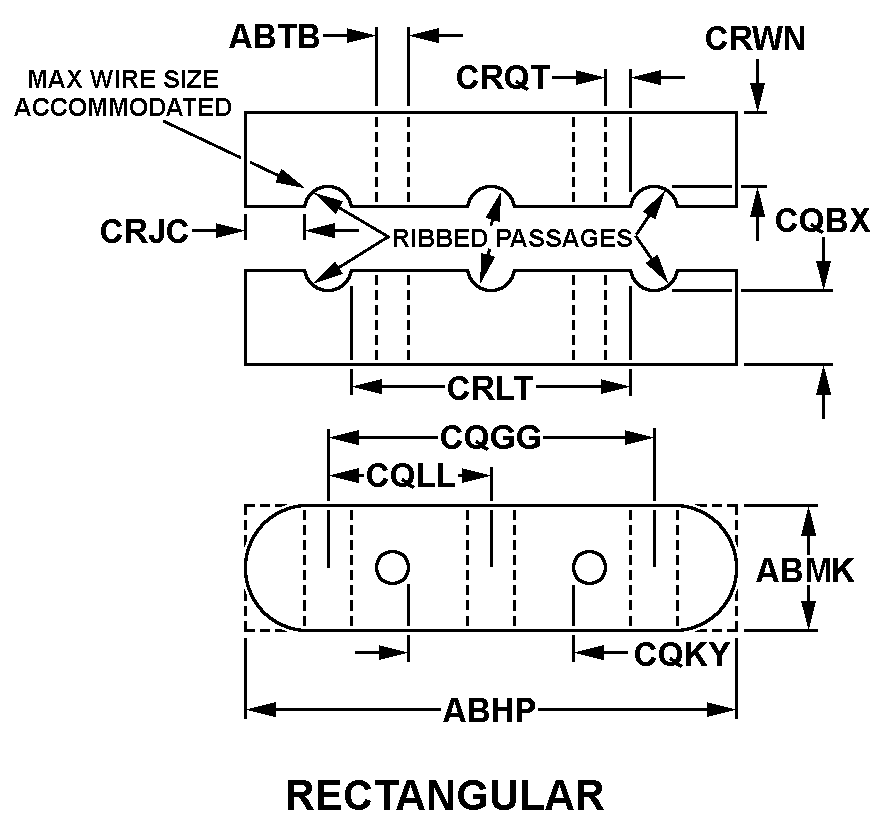

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5970-00-284-8093
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102489 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5970-00-284-8093
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| SECOND DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 0.031 INCHES NOMINAL |
| FIRST DISTANCE BETWEEN CONDUCTOR GROOVES | 1.750 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 1.000 INCHES NOMINAL |
| SECOND DISTANCE BETWEEN CONDUCTOR GROOVES | 1.000 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR GROOVE TO INSULATOR END | 0.219 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 1.688 INCHES NOMINAL |
| DISTANCE BETWEEN CONDUCTOR GROOVE AND MOUNTING HOLE | 0.282 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 0.094 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, PHENOL-FORMALDEHYDE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
| CONDUCTOR MECHANICAL ACCOMMODATION QUANTITY | 3 |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 20 AWG |
| SPECIAL FEATURES | 0.266 IN DIA HOLE CENTERED WITH MOUNTING HOLES 1.125 IN. FROM ONE END |
