Part Details | CLEAT INSULATOR
5970-00-284-8578 An insulator of a generally rectangular shape which is designed to be attached to a rigid structure. It consists of two separate parts. For items of a generally cylindrical shape, see INSULATOR, KNOB.
Alternate Parts: HHI435TYPE6CLASS2SIZE12, 5970-00-284-8578, 00-284-8578, 5970002848578, 002848578
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-8578 | 18282 ( INSULATOR, CLEAT ) |

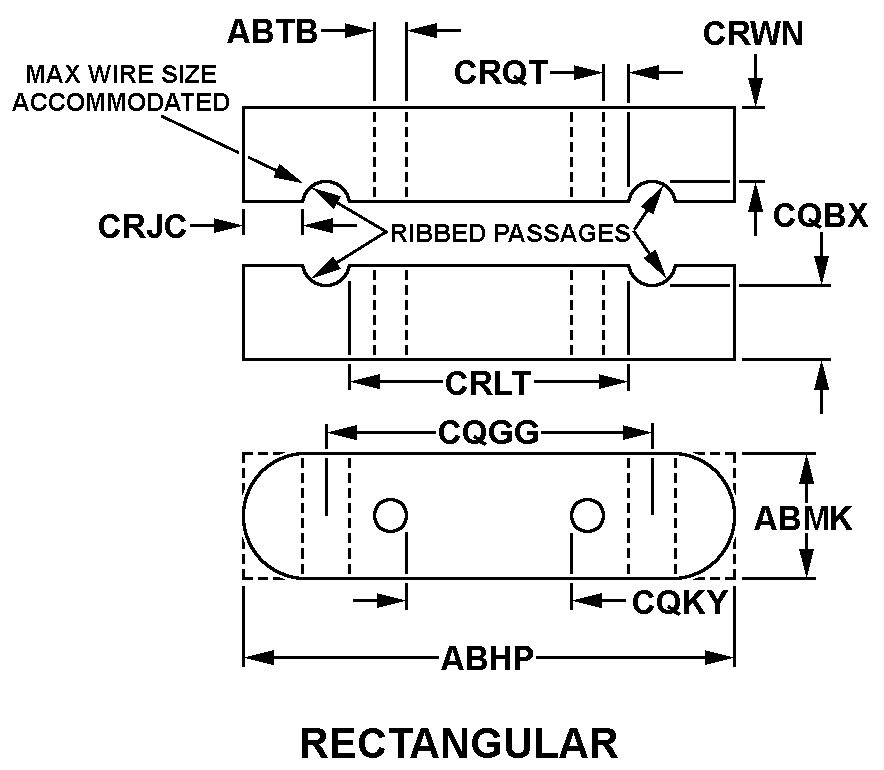

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5970-00-284-8578
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HHI435TYPE6CLASS2SIZE12 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5970-00-284-8578
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| SECOND DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 0.500 INCHES NOMINAL |
| FIRST DISTANCE BETWEEN CONDUCTOR GROOVES | 2.750 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR GROOVE TO INSULATOR END | 0.250 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 2.500 INCHES NOMINAL |
| DISTANCE BETWEEN CONDUCTOR GROOVE AND MOUNTING HOLE | 0.250 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 0.500 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| CONDUCTOR MECHANICAL ACCOMMODATION QUANTITY | 2 |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 12 AWG |
| NONDEFINITIVE SPEC/STD DATA | 2 CLASS AND VI TYPE |
