Part Details | STANDOFF INSULATOR
5970-00-285-0141 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Alternate Parts: RE61AA2586, 5970-00-285-0141, 00-285-0141, 5970002850141, 002850141
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-285-0141 | 00225 ( INSULATOR, STANDOFF ) |

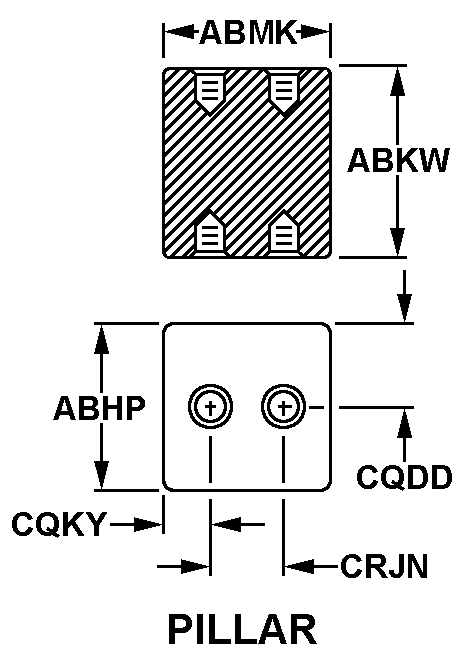

REFERENCE DRAWINGS & PICTURES
PILLAR
Cross Reference | NSN 5970-00-285-0141
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RE61AA2586 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5970-00-285-0141
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PILLAR |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| THIRD MOUNTING HOLE SPACING | 0.312 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 0.188 INCHES NOMINAL |
| SECOND MOUNTING HOLE SPACING | 0.563 INCHES NOMINAL |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ELECTRICAL TERMINATION UNC |
| SCREW THREAD DIAMETER AND LOCATION | A0.190 ELECTRICAL TERMINATION INCHES |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 32 ELECTRICAL TERMINATION |
| THREAD CLASS AND LOCATION | 2B ELECTRICAL TERMINATION |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE DIMENSIONS |
