Part Details | FEEDTHRU INSULATOR
5970-00-524-6759 An insulator which is specifically designed to provide for the passage of electrical conductors through such items as panels, bulkheads, walls, and the like. It consists of two or more insulators, including one or more studs fed through the items in such a way as to be used as conductors. The studs may be used for mounting. See also INSULATOR, BOWL; and TERMINAL, FEEDTHRU, INSULATED.
Alternate Parts: 14403, 1L8U, IL8U, MILDTL7965, MIL-DTL-7965, MS250541B, MS25054-1B, 5970-00-524-6759, 00-524-6759, 5970005246759, 005246759
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-524-6759 | 18284 ( INSULATOR, FEEDTHRU ) |

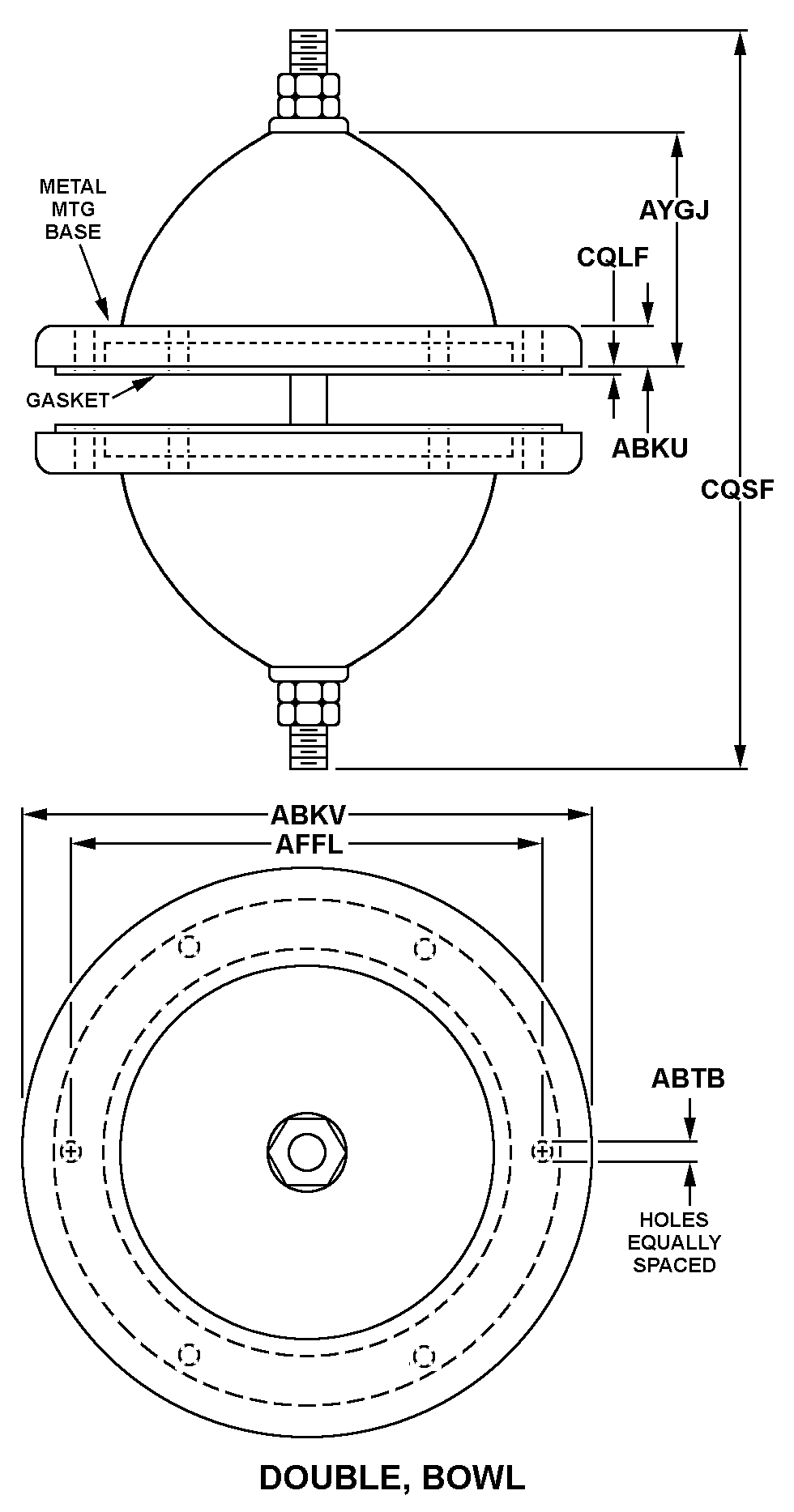

REFERENCE DRAWINGS & PICTURES
DOUBLE, BOWL
Cross Reference | NSN 5970-00-524-6759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14403 | 55635 | DAYTON-GRANGER INC. |
| 1L8U | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| IL8U | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| MIL-DTL-7965 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS25054-1B | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5970-00-524-6759
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE, BOWL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 2.250 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 1.620 INCHES NOMINAL |
| GASKET THICKNESS | 0.130 INCHES NOMINAL |
| CENTER STUD LENGTH | 1.990 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL ANY ACCEPTABLE |
