Part Details | ELECTRICAL BOX CONNECTOR
5975-00-109-5370 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Alternate Parts: 600, 1051, 2538C, 25-38C, 7240V, 258439P, 25-8439P, 699, 2611, 2131, CC420, CC-420, 291, 5975-00-109-5370, 00-109-5370, 5975001095370, 001095370
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 02, 1968 | 00-109-5370 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

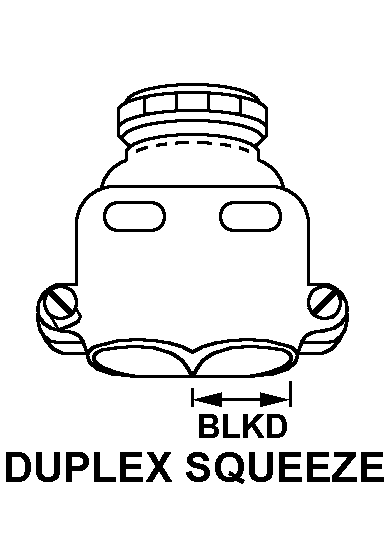

DUPLEX SQUEEZE
Cross Reference | NSN 5975-00-109-5370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 600 | 05500 | BRIDGEPORT FITTINGS INC |
| 1051 | 72971 | EFCOR INC |
| 25-38C | 83879 | EGS ELECTRIC CO LLC |
| 7240V | 03743 | EGS ELECTRICAL GROUPAPPLETON DIV |
| 25-8439P | 66935 | JOHNSON CONTROLS NAVY SYSTEMS, LLC |
| 699 | 81284 | MIDWEST ELECTRIC MFG CORPSUB OF CROUSE-HINDS CO |
| 2611 | 28488 | RACO, A DIVISION OF HUBBELLINCORPORATED(DELAWARE) |
| 2131 | 28488 | RACO, A DIVISION OF HUBBELLINCORPORATED(DELAWARE) |
| CC-420 | 56501 | THOMAS & BETTS CORPORATION |
| 291 | 56501 | THOMAS & BETTS CORPORATION |
Technical Data | NSN 5975-00-109-5370
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DUPLEX SQUEEZE |
| MATERIAL | IRON MALLEABLE |
| FURNISHED ITEMS | LOCKNUT |
