Part Details | JUNCTION BOX COVER
5975-00-284-6072 A cover containing facilities for mounting directly on a JUNCTION BOX. It may have provisions for the insertion and/or mounting of electrical devices, such as switches, connectors, additional covers, and jewels. It may include the jewel(s). For covers having facilities for mounting on brackets or on current carrying devices such as switches and receptacle connectors, see PLATE, WALL, ELECTRICAL. See also COVER, CONDUIT OUTLET.
Alternate Parts: MT4238040006, MT4238-040-006, 5975-00-284-6072, 00-284-6072, 5975002846072, 002846072
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-6072 | 13702 ( COVER, JUNCTION BOX ) |
REFERENCE DRAWINGS & PICTURES

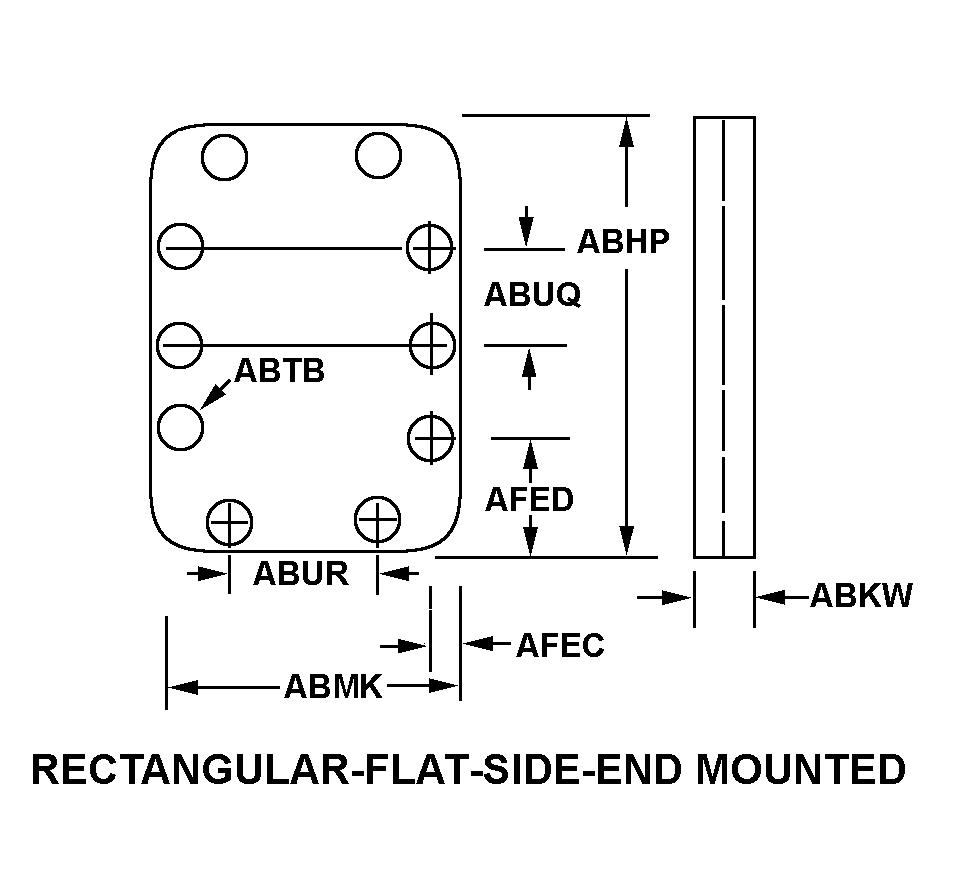

RECTANGULAR-FLAT-SIDE-END MOUNTED
Cross Reference | NSN 5975-00-284-6072
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MT4238-040-006 | 98376 | STAR CASES, LLCDBA ZERO MANUFACTURING |
Technical Data | NSN 5975-00-284-6072
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR-FLAT-SIDE-END MOUNTED |
| OVERALL LENGTH | 10.273 INCHES NOMINAL |
| OVERALL HEIGHT | 0.188 INCHES NOMINAL |
| OVERALL WIDTH | 4.524 INCHES NOMINAL |
| COVER TYPE | BLANK AND RAISED |
