Part Details | ELECTRICAL BOX CONNECTOR
5975-00-284-6282 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Alternate Parts: AN305828, AN3058-28, 9228, 9-2-28, 5975-00-284-6282, 00-284-6282, 5975002846282, 002846282
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-6282 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

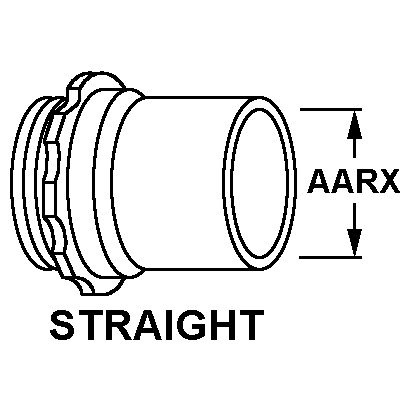

STRAIGHT
Cross Reference | NSN 5975-00-284-6282
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN3058-28 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 9-2-28 | 30463 | DCX-CHOL ENTERPRISES, INC.DBA ELECSYS DIVISION OF DCX-CHOL |
Technical Data | NSN 5975-00-284-6282
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
