Part Details | ELECTRICAL CABLE NIPPLE
5975-00-284-6475 A preformed item having high electrical resistance designed for installation on end of cable or lead in order to cover the terminal or termination. It may partially cover the terminal of the item to which the cable or lead is attached. May also provide mechanical protection. Excludes INSULATION SLEEVING, ELECTRICAL.
Alternate Parts: AA7MA202, AA7MA202, P10553101, P10553-101, P10553, 5975-00-284-6475, 00-284-6475, 5975002846475, 002846475
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-284-6475 | 06286 ( CABLE NIPPLE, ELECTRICAL ) |

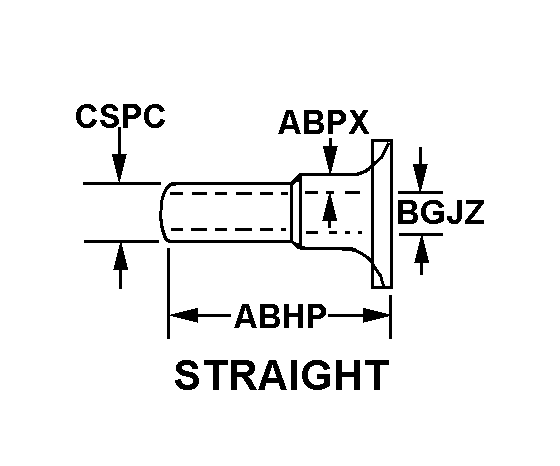

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 5975-00-284-6475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AA7MA202 | 1H6M3 | AMERICAN TERRA VEHICLES INC |
| AA7MA202 | 50803 | DECO-GRAND INC SUB OF GRANDMACHINING CO |
| P10553-101 | 04597 | PROJECTS UNLIMITED, INC.DIV NA |
| P10553 | 04597 | PROJECTS UNLIMITED, INC.DIV NA |
Technical Data | NSN 5975-00-284-6475
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| OVERALL LENGTH | 0.600 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.030 INCHES NOMINAL |
| BASE INSIDE DIAMETER | 0.485 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.485 INCHES NOMINAL |
| COLOR | |
| FLEXIBILITY | FLEXIBLE |
| SPECIAL FEATURES | FREEZE RESISTANT |
