Part Details | STUFFING TUBE
5975-00-284-8436 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: SCD16576GR0UPV, 5975-00-284-8436, 00-284-8436, 5975002848436, 002848436
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-8436 | 00882 ( STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

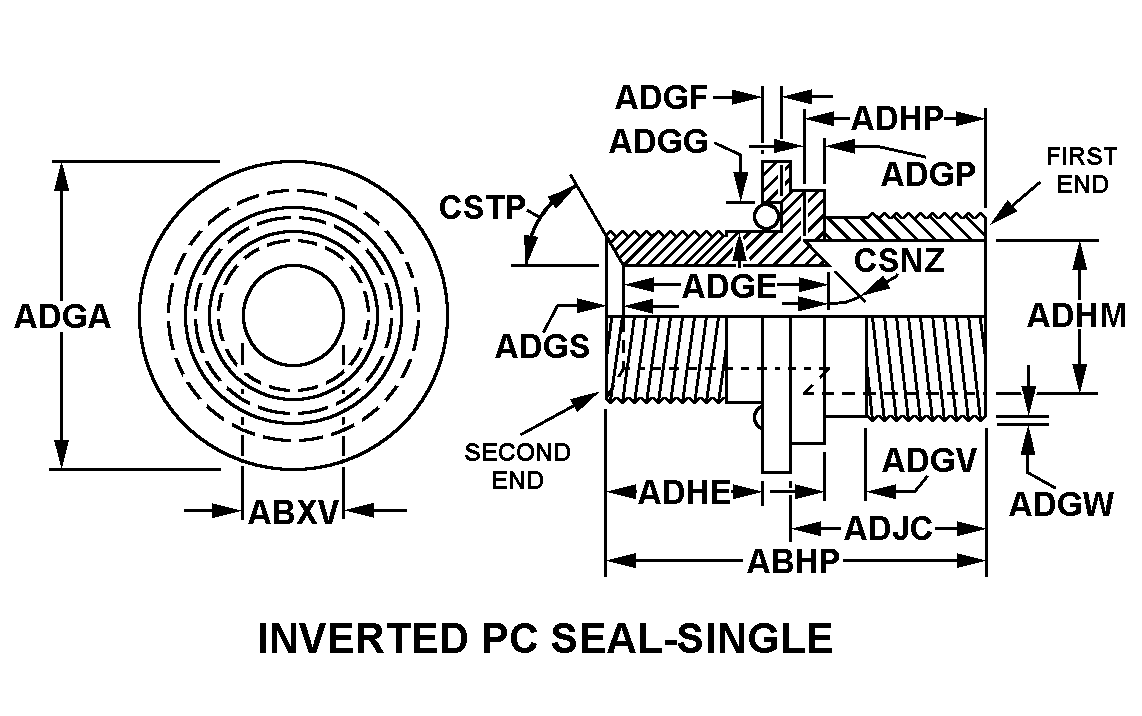

INVERTED PC SEAL-SINGLE
Cross Reference | NSN 5975-00-284-8436
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCD16576GR0UPV | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5975-00-284-8436
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | INVERTED PC SEAL-SINGLE |
| OVERALL LENGTH | 1.188 INCHES NOMINAL |
| BORE DIAMETER | 0.755 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.437 INCHES NOMINAL |
| BORE LENGTH | 0.813 INCHES NOMINAL |
| OUTSIDE RECESS LENGTH | 0.083 INCHES NOMINAL |
| OUTSIDE RECESS WIDTH | 0.130 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.375 INCHES NOMINAL |
| THREAD RELIEF LENGTH | 0.407 INCHES NOMINAL |
| THREAD RELIEF DEPTH | 0.121 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 0.937 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 0.407 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 0.563 INCHES NOMINAL |
| SECOND END CHAMFER ANGLE | 60.0 DEGREES NOMINAL |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | WELDED |
| FURNISHED ITEMS | GASKET AND O-RING |
| SPECIAL FEATURES | W/NUTS; SLEEVE |
