Part Details | STUFFING TUBE PACKING NUT
5975-00-284-9340 A threaded or unthreaded device, with an unthreaded center hole to accommodate an electrical cable or tube, designed to mate with the threads or sealing components of a stuffing tube body for the purpose of compressing packing around the electrical cable or tube. A component of a STUFFING TUBE.
Alternate Parts: 329108145, 329108-145, 329108145, 329108-145, 9S5235PC2EE, 9S5235LPC2, 5975-00-284-9340, 00-284-9340, 5975002849340, 002849340
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-9340 | 15324 ( PACKING NUT, STUFFING TUBE ) |

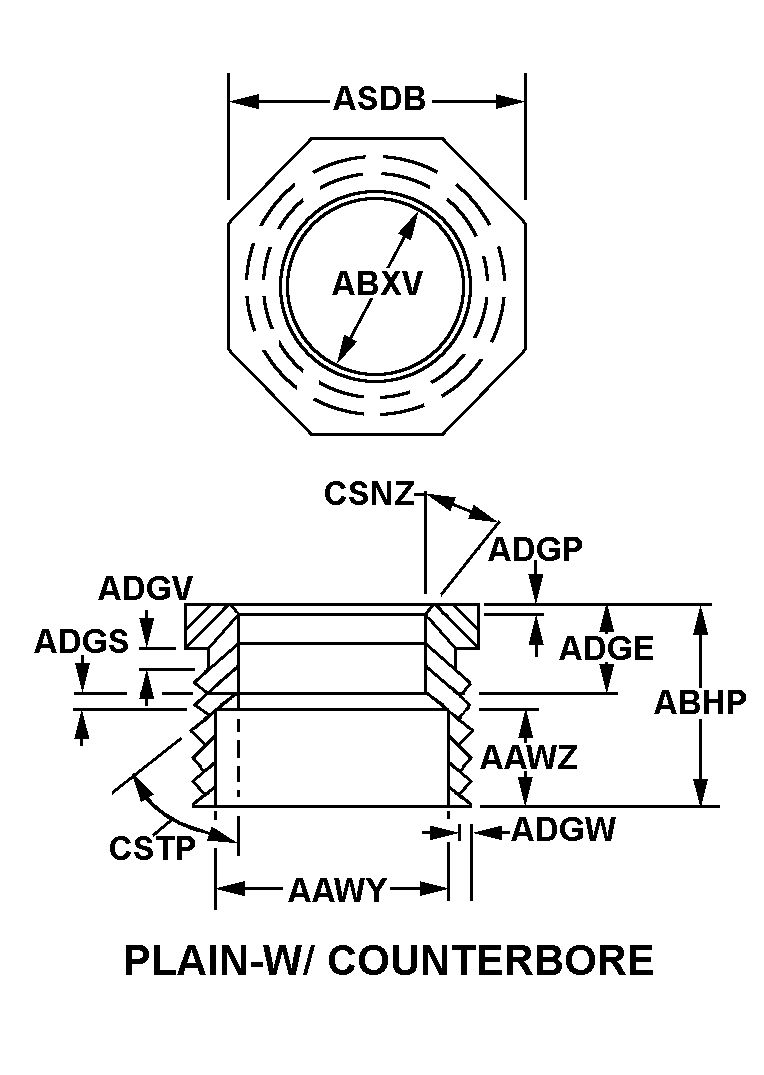

REFERENCE DRAWINGS & PICTURES
PLAIN-W/COUNTERBORE
Cross Reference | NSN 5975-00-284-9340
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 329108-145 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 329108-145 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 9S5235PC2EE | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9S5235LPC2 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5975-00-284-9340
| Characteristic | Specifications |
|---|---|
| SIZE | 0.812 INCHES NOMINAL |
| STYLE DESIGNATOR | PLAIN-W/COUNTERBORE |
| WIDTH ACROSS FLATS | 1.375 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 1.000 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.500 INCHES NOMINAL |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| BORE DIAMETER | 0.812 INCHES NOMINAL |
| BORE LENGTH | 0.562 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.125 INCHES NOMINAL |
| SECOND END CHAMFER DEPTH | 0.125 INCHES NOMINAL |
| THREAD RELIEF LENGTH | 0.188 INCHES NOMINAL |
| THREAD RELIEF DEPTH | 0.062 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 12 |
| THREAD LENGTH | 0.688 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL MARKINGS | E |
