Part Details | ELECTRICAL CABLE PROTECTOR
5975-00-285-0302 An item designed to be interposed between a cable and its support or housing to prevent chafing caused by contraction and expansion due to changes in the ambient temperature or damage or injury from outside sources. Excludes such items as loom, cotton sleeving, rubber blankets, grade clamps and all types of conduit and INSULATION SLEEVING, ELECTRICAL.
Alternate Parts: 505402, 50540-2, 5975-00-285-0302, 00-285-0302, 5975002850302, 002850302
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-285-0302 | 00111 ( PROTECTOR, ELECTRICAL CABLE ) |

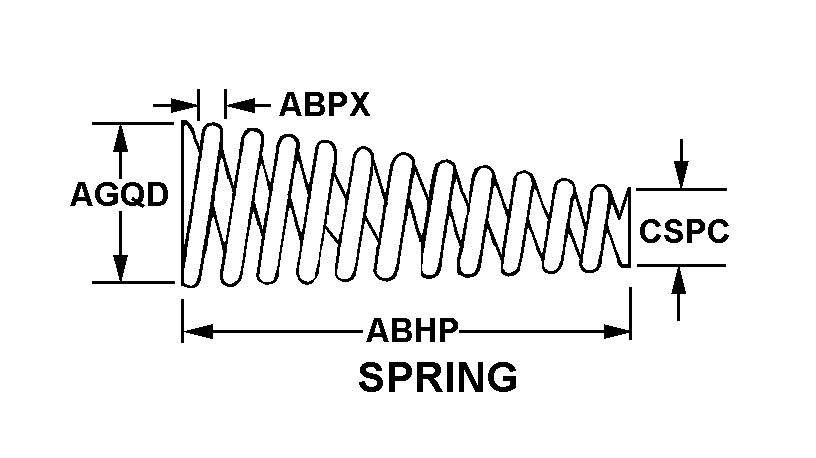

REFERENCE DRAWINGS & PICTURES
SPRING
Cross Reference | NSN 5975-00-285-0302
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50540-2 | 03848 | ARMA DIVAMBAC INDUSTRIES INC |
Technical Data | NSN 5975-00-285-0302
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPRING |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.016 INCHES NOMINAL |
| BASE OUTSIDE DIAMETER | 1.375 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.750 INCHES NOMINAL |
| FLEXIBILITY | FLEXIBLE |
