Part Details | STUFFING TUBE
5975-00-296-4099 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: M196221009, M19622-1-009, MILS196221, MILS19622-1, 5975-00-296-4099, 00-296-4099, 5975002964099, 002964099
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-296-4099 | 00882 ( STUFFING TUBE ) |

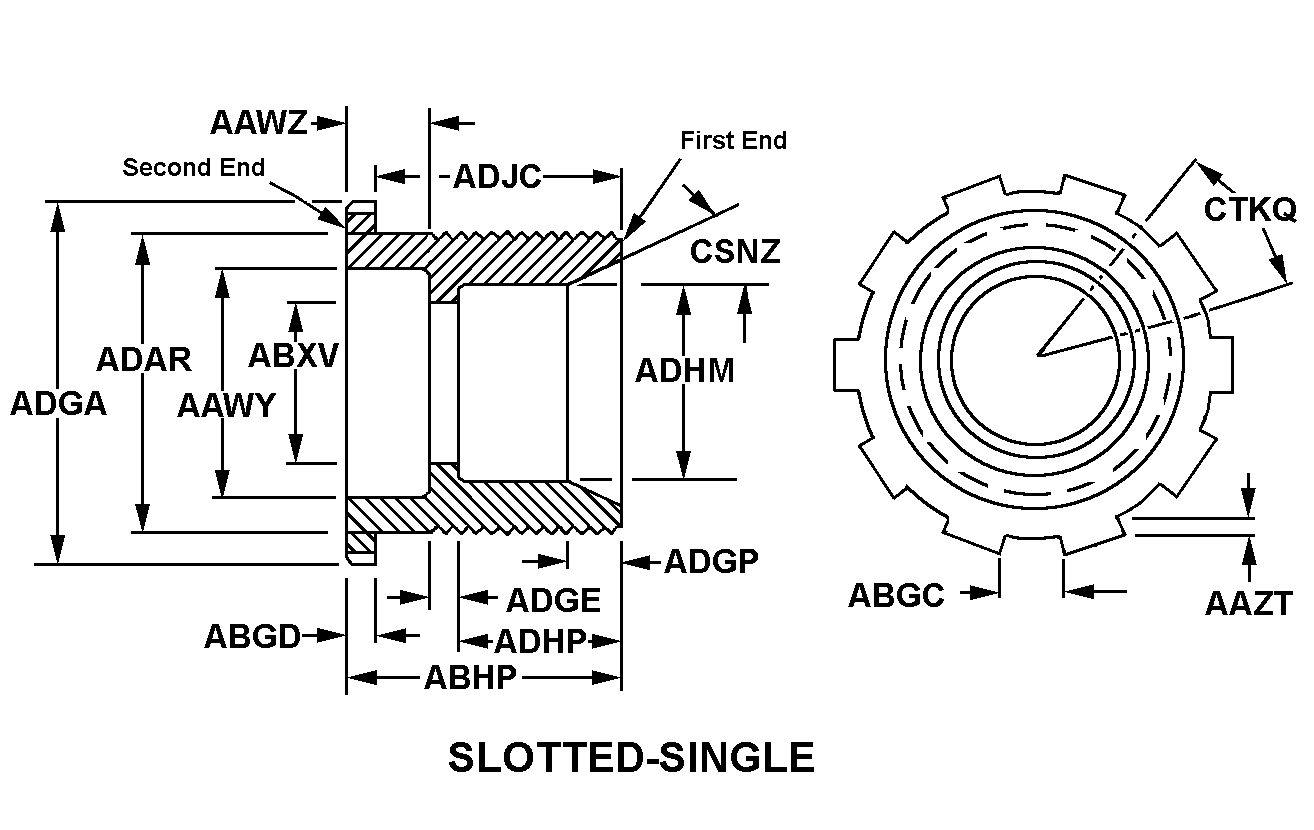

REFERENCE DRAWINGS & PICTURES
SLOTTED-SINGLE
Cross Reference | NSN 5975-00-296-4099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M19622-1-009 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MILS19622-1 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5975-00-296-4099
| Characteristic | Specifications |
|---|---|
| SIZE | 2.094 INCHES NOMINAL |
| STYLE DESIGNATOR | SLOTTED-SINGLE |
| COUNTERBORE DIAMETER | 2.875 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.499 INCHES NOMINAL |
| SLOT DEPTH | 0.187 INCHES NOMINAL |
| SLOT WIDTH | 0.500 INCHES NOMINAL |
| SLOT LENGTH | 0.187 INCHES NOMINAL |
| OVERALL LENGTH | 2.422 INCHES NOMINAL |
| BORE DIAMETER | 2.089 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.875 INCHES NOMINAL |
| BORE LENGTH | 0.187 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.750 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 2.312 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 1.750 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 2.235 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 10.0 DEGREES NOMINAL |
| SLOT ANGLE | 30.0 DEGREES NOMINAL |
| PACKING CHAMBER QUANTITY | 1 |
| FURNISHED ITEMS | GLAND NUT AND GLAND RING |
| SPECIAL MARKINGS | 8 |
