Part Details | STUFFING TUBE
5975-00-296-6608 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: M242351102, M24235-11-02, MILS24235, 9000S620274438, 9000-S6202-74438, 5975-00-296-6608, 00-296-6608, 5975002966608, 002966608
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-296-6608 | 00882 ( STUFFING TUBE ) |

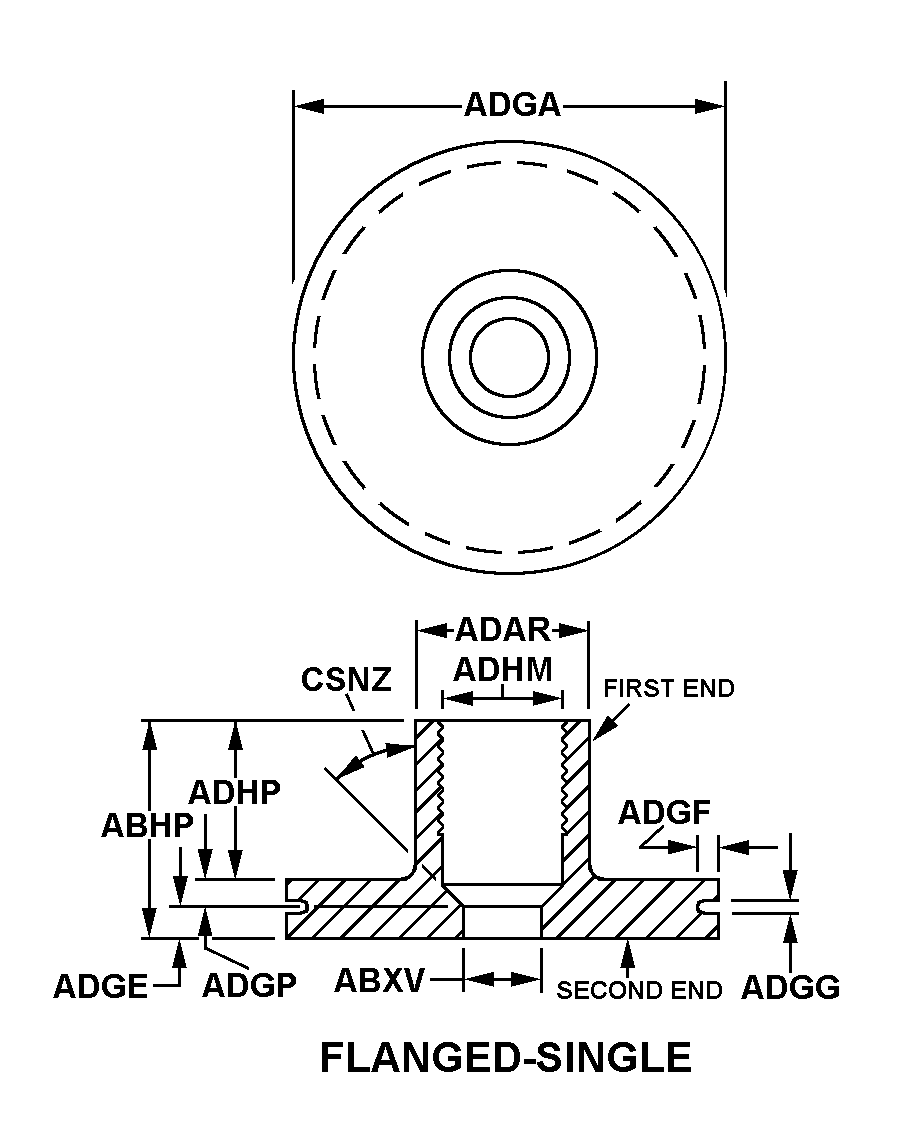

REFERENCE DRAWINGS & PICTURES
FLANGED-SINGLE
Cross Reference | NSN 5975-00-296-6608
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24235-11-02 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MILS24235 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 9000-S6202-74438 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5975-00-296-6608
| Characteristic | Specifications |
|---|---|
| SIZE | 0.515 INCHES NOMINAL |
| STYLE DESIGNATOR | FLANGED-SINGLE |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| BORE DIAMETER | 0.510 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.109 INCHES NOMINAL |
| BORE LENGTH | 0.160 INCHES NOMINAL |
| OUTSIDE RECESS LENGTH | 0.086 INCHES NOMINAL |
| OUTSIDE RECESS WIDTH | 0.090 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |
| FIRST END CHAMFER DEPTH | 0.189 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 0.887 INCHES MINIMUM AND 0.897 INCHES MAXIMUM |
| FIRST PACKING CHAMBER LENGTH | 1.186 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | WELDED |
| FURNISHED ITEMS | CAP AND GASKET AND GLAND NUT AND GLAND RING |
| SPECIAL FEATURES | NON-MAGNETIC |
