Part Details | INTERIOR CABLE RACK
5975-00-299-1202 An open frame structure primarily designed to support electrical cables in buildings and shelters. Its purpose is to provide, by itself or by joining to similar structures, a path or runway for cable which may connect two or more pieces of electrical equipment. It does not include items designed to hold a single cable. See also RACK, CABLE, UNDERGROUND; and HANGER, CABLE.
Alternate Parts: 10112379, 5975-00-299-1202, 00-299-1202, 5975002991202, 002991202
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 19, 1968 | 00-299-1202 | 08082 ( RACK, CABLE, INTERIOR ) |
REFERENCE DRAWINGS & PICTURES

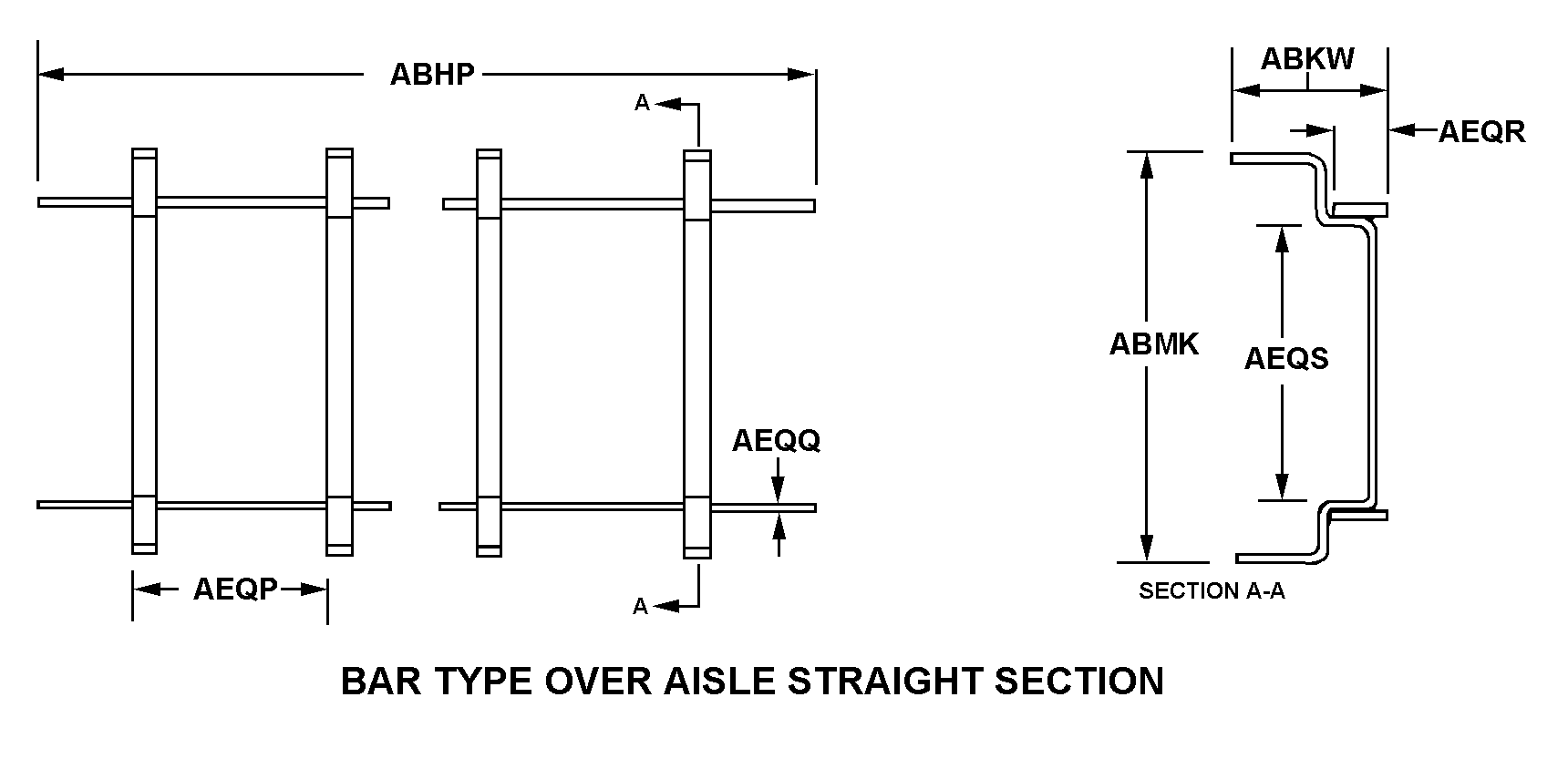

BAR TYPE OVER AISLE STRAIGHT SECTION
Cross Reference | NSN 5975-00-299-1202
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10112379 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5975-00-299-1202
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BAR TYPE OVER AISLE STRAIGHT SECTION |
| OVERALL LENGTH | 24.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.812 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| CROSS-MEMBER SPACING | 6.500 INCHES NOMINAL |
| STRINGER THICKNESS | 0.065 INCHES NOMINAL |
| STRINGER WIDTH | 0.250 INCHES NOMINAL |
| CLEARANCE WIDTH | 1.375 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 8 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE |
