Part Details | ELECTRICAL EQUIPMENT RACK BASE
5975-00-327-4477 A structural item which is specifically designed to provide a suitable flat surface to support one or more RACK, ELECTRICAL EQUIPMENT. It may include legs and/or leveling devices. For similar items designed primarily for the purpose of damping shock and/or vibration, see MOUNTING BASE, ELECTRICAL EQUIPMENT. See also STAND, (as modified).
Alternate Parts: MT1576G, SCDL195181A, SC-DL-195181A, 5975-00-327-4477, 00-327-4477, 5975003274477, 003274477
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-327-4477 | 11289 ( BASE, ELECTRICAL EQUIPMENT RACK ) |
REFERENCE DRAWINGS & PICTURES

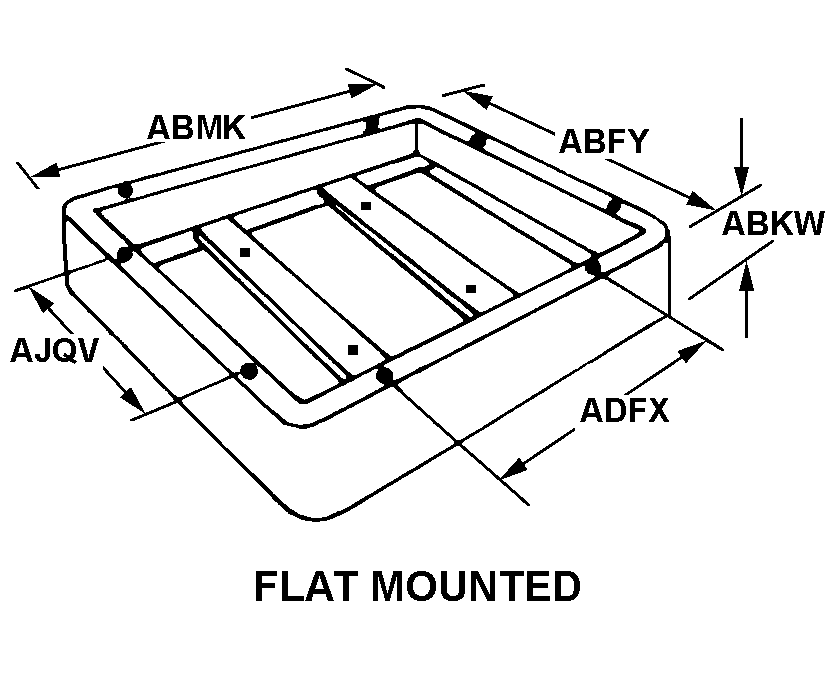

FLAT MOUNTED
Cross Reference | NSN 5975-00-327-4477
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MT1576G | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| SC-DL-195181A | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5975-00-327-4477
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLAT MOUNTED |
| OVERALL DEPTH | 23.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 38.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 8.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG DEPTH | 5.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 8 ALLOY 5052,H32 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072,FINISH E511 MIL SPEC SINGLE TREATMENT RESPONSE |
| COLOR | GRAY |
| MOUNTING PROVISION | THREADED STUD |
| COMPONENT MOUNTING FACILITY TYPE AND QUANTITY | 14 UNTHREADED HOLE |
