Part Details | STUFFING TUBE PLUG
5975-00-355-4744 An item designed to be fitted into the body of a STUFFING TUBE in order to prevent the leakage of liquids and/or gases through the opening in the absence of the cable normally passing through the tube.
Alternate Parts: 9000S6202F73937SIZE0B, 5975-00-355-4744, 00-355-4744, 5975003554744, 003554744
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-355-4744 | 03882 ( PLUG, STUFFING TUBE ) |

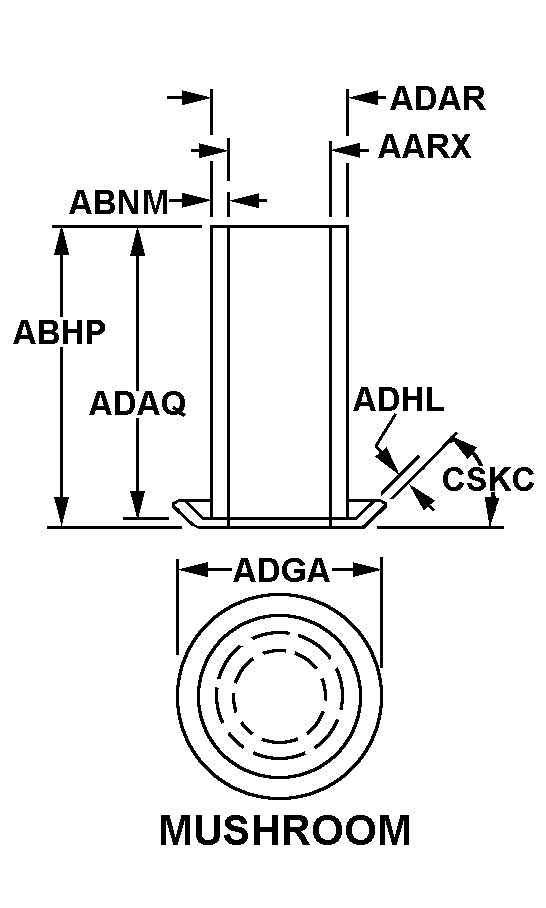

REFERENCE DRAWINGS & PICTURES
MUSHROOM
Cross Reference | NSN 5975-00-355-4744
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9000S6202F73937SIZE0B | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5975-00-355-4744
| Characteristic | Specifications |
|---|---|
| SIZE | 0.281 INCHES NOMINAL |
| STYLE DESIGNATOR | MUSHROOM |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| DISK THICKNESS | 0.062 INCHES NOMINAL |
| TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SPECIAL MARKINGS | 0B |
