Part Details | STUFFING TUBE
5975-00-355-4810 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: M242358004, M24235/8-004, MILS242358, MIL-S-24235/8, 9000S6202F73902REV0TYPE6SIZED, 5975-00-355-4810, 00-355-4810, 5975003554810, 003554810
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-355-4810 | 00882 ( STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

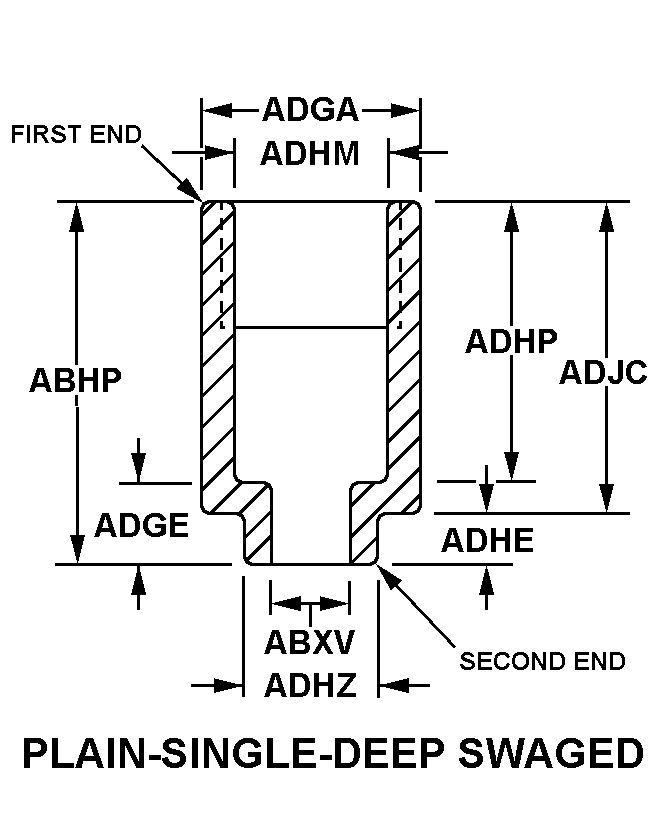

PLAIN-SINGLE-DEEP SWAGED
Cross Reference | NSN 5975-00-355-4810
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24235/8-004 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-S-24235/8 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 9000S6202F73902REV0TYPE6SIZED | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5975-00-355-4810
| Characteristic | Specifications |
|---|---|
| SIZE | 0.750 INCHES NOMINAL |
| STYLE DESIGNATOR | PLAIN-SINGLE-DEEP SWAGED |
| OVERALL LENGTH | 3.484 INCHES NOMINAL |
| BORE DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.660 INCHES NOMINAL |
| BORE LENGTH | 0.203 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 1.368 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 3.281 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 3.406 INCHES NOMINAL |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | BRAZED |
| FURNISHED ITEMS | GLAND NUT AND GASKET |
| SPECIAL MARKINGS | D |
