Part Details | BLANK PANEL
5975-00-370-1415 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.
Alternate Parts: 152627, 152627, 5975-00-370-1415, 00-370-1415, 5975003701415, 003701415
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-370-1415 | 15195 ( PANEL, BLANK ) |

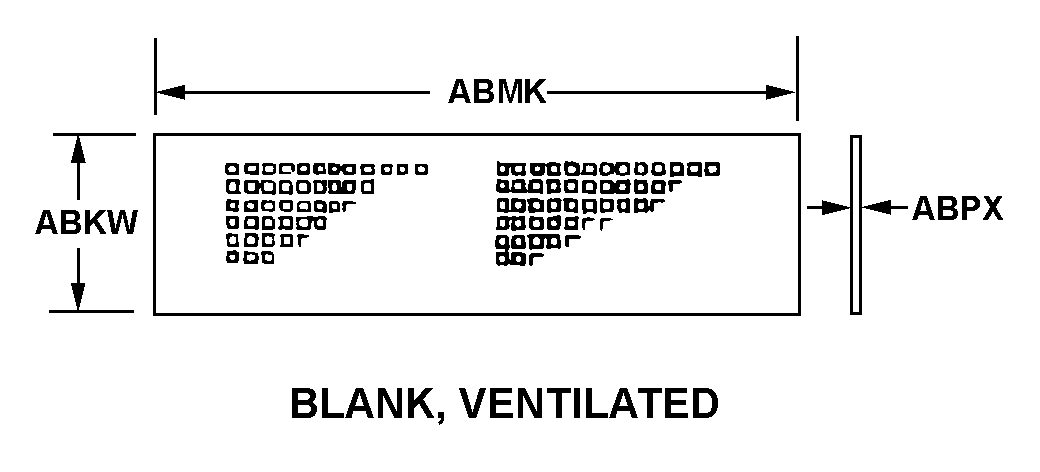

REFERENCE DRAWINGS & PICTURES
BLANK, VENTILATED
Cross Reference | NSN 5975-00-370-1415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 152627 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 152627 | 57712 | TELEMECHANICS INC |
Technical Data | NSN 5975-00-370-1415
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, VENTILATED |
| OVERALL HEIGHT | 2.625 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.750 INCHES NOMINAL |
| MATERIAL | STEEL |
| MOUNTING PROVISION | UNTHREADED HOLE |
| FSC APPLICATION DATA | TELETYPE AND FACSIMILE EQUIPMENT |
