Part Details | ELECTRICAL-ELECTRONIC EQUIPMENT CHASSIS
5975-00-397-7404 A box, frame, or plate fabricated of electrically conductive material designed to mount, but which does not include, electronic components and their associated circuitry. It may have facilities for attachment to a rack or cabinet or to accommodate specially designed components. It may include a shielding function, integral wiring, and mounting hardware as part of the item. Excludes MOUNTING BASE, ELECTRICAL EQUIPMENT.
Alternate Parts: 102529, 5975-00-397-7404, 00-397-7404, 5975003977404, 003977404
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-397-7404 | 38671 ( CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

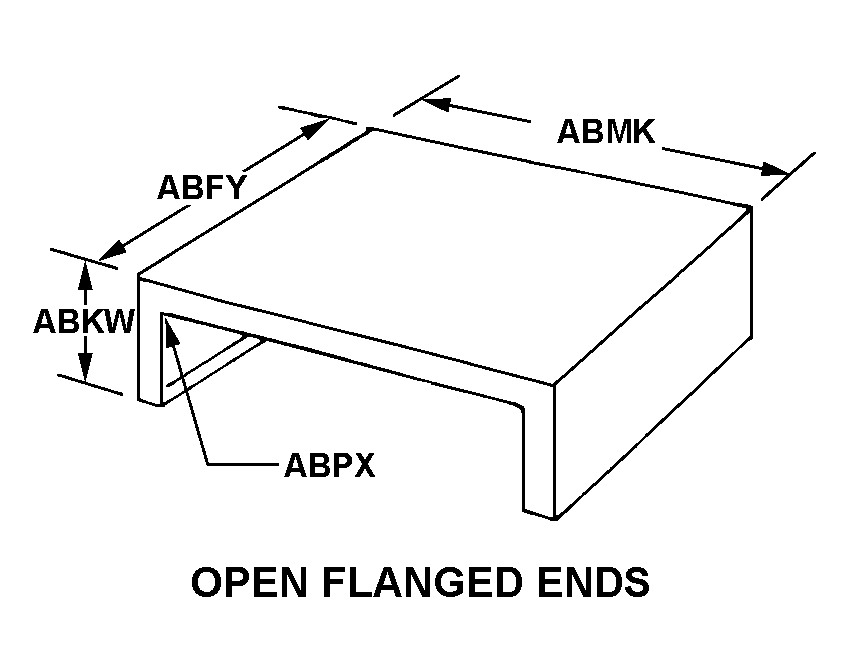

OPEN FLANGED ENDS
Cross Reference | NSN 5975-00-397-7404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102529 | 98571 | TELEDYNE CONTROLS, LLC |
Technical Data | NSN 5975-00-397-7404
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | OPEN FLANGED ENDS |
| OVERALL DEPTH | 9.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.625 INCHES NOMINAL |
| OVERALL WIDTH | 7.938 INCHES NOMINAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-318,CONDITION 32 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PAINT |
| FSC APPLICATION DATA | AIRCRAFT GUNNERY FIRE CONTROL EQUIPMENT |
