Part Details | STUFFING TUBE
5975-00-436-1676 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: 1B20FTSH0F23, MILS23920, 5975-00-436-1676, 00-436-1676, 5975004361676, 004361676
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 07, 1969 | 00-436-1676 | 00882 ( STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

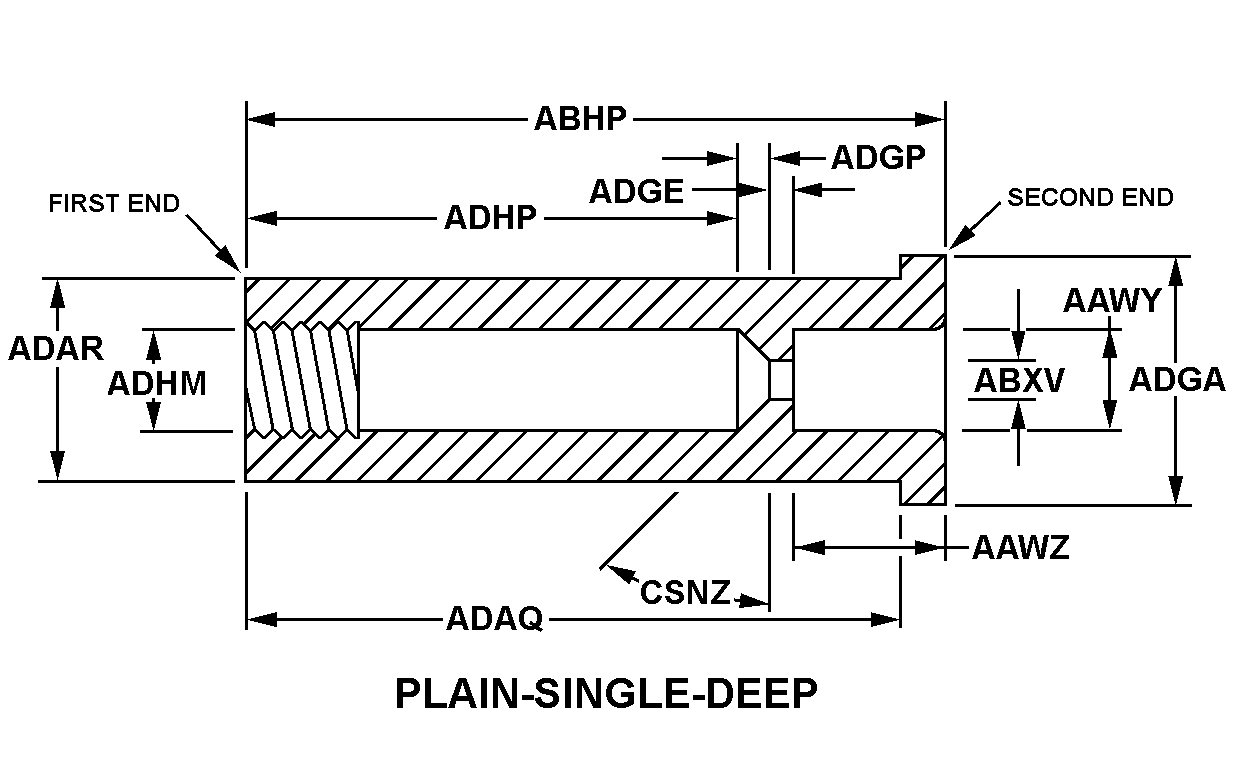

PLAIN-SINGLE-DEEP
Cross Reference | NSN 5975-00-436-1676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1B20FTSH0F23 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MILS23920 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5975-00-436-1676
| Characteristic | Specifications |
|---|---|
| SIZE | 0.350 INCHES NOMINAL |
| STYLE DESIGNATOR | PLAIN-SINGLE-DEEP |
| COUNTERBORE DIAMETER | 0.874 INCHES MINIMUM AND 0.876 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 1.187 INCHES MINIMUM AND 1.192 INCHES MAXIMUM |
| OVERALL LENGTH | 5.625 INCHES NOMINAL |
| BORE DIAMETER | 0.390 INCHES NOMINAL |
| BODY LENGTH | 5.250 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.619 INCHES MINIMUM AND 1.621 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| BORE LENGTH | 0.121 INCHES NOMINAL |
| SECOND END CHAMFER ANGLE | 30.0 DEGREES NOMINAL |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | WELDED |
| FURNISHED ITEMS | BUSHING AND GLAND NUT AND GLAND RING AND PACKING AND WASHER |
| SPECIAL FEATURES | CABLE 20 FEET LONG |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND B CLASS |
