Part Details | CONDUIT OUTLET COVER
5975-00-504-8990 An item of any material, with or without threads, designed to mate with a CONDUIT OUTLET or a SEALING FITTING, ELECTRICAL CONDUIT. It may be designed as a removable side plate cover with or without hubs. It may have provisions for draining or venting. It may be designed for the insertion and/or mounting of electrical devices, such as switches, receptacle connectors, and indicator light lenses. It may include mechanisms for the external operation of switches but does not include the wiring devices. For items designed to mount directly on a bracket or an electrical current carrying wiring device, see PLATE, WALL, ELECTRICAL. See also COVER, JUNCTION BOX.
Alternate Parts: S322, S322, TS2, TS-2, TS2, TS-2, TS2, TS-2, 5975-00-504-8990, 00-504-8990, 5975005048990, 005048990
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-504-8990 | 19945 ( COVER, CONDUIT OUTLET ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

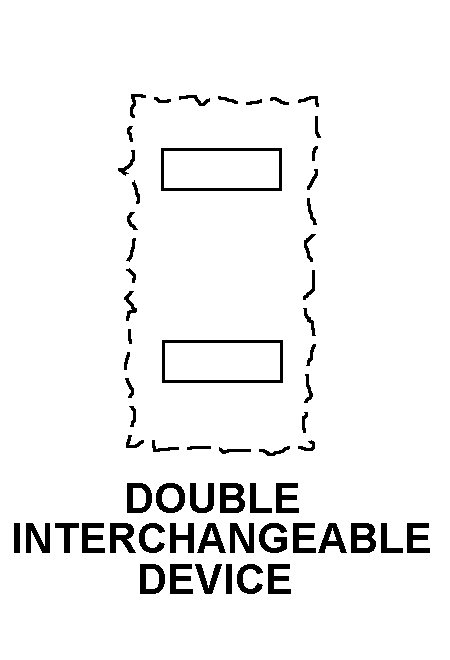

DOUBLE INTERCHANGEABLE DEVICE
RECTANGULAR/SQUARE
Cross Reference | NSN 5975-00-504-8990
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S322 | 15235 | CROUSE-HINDS CO |
| S322 | 77774 | CROUSE-HINDS LIGHTING |
| TS-2 | 98245 | GENERAL SIGNAL CORPO Z/GEDNEY CO UNIT |
| TS-2 | 07909 | SOUTHWIRE COMPANY DOUGLAS PLANT |
| TS-2 | 82879 | YORK TECHNICAL INSTITUTE LLCDBA YTI CAREER |
Technical Data | NSN 5975-00-504-8990
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR/SQUARE |
| TRADE DESIGNATION | FS AND FD SERIES |
| COVER MOUNTING METHOD | THREADED FASTENER |
| COVER MOUNTING HOLE QUANTITY | 4 |
| COVER MOUNTING HOLE ARRANGEMENT STYLE | RECTANGULAR |
| COVER MOUNTING SURFACE TYPE | RIDGED |
| FUNCTIONAL COVER STYLE | DOUBLE INTERCHANGEABLE DEVICE |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
| FURNISHED ITEMS | COVER MOUNTING SCREW |
