Part Details | GROUND ROD
5975-00-518-4552 An item designed to be driven into the earth for the purpose of establishing electrical contact. One end is pointed or tapered to facilitate entrance into the earth. See also ROD SECTION, GROUND.
Alternate Parts: MILR11461, MIL-R-11461, 170203101, 17-02031-01, 6253S, C54, 5975-00-518-4552, 00-518-4552, 5975005184552, 005184552
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-518-4552 | 00247 ( ROD, GROUND ) |
REFERENCE DRAWINGS & PICTURES

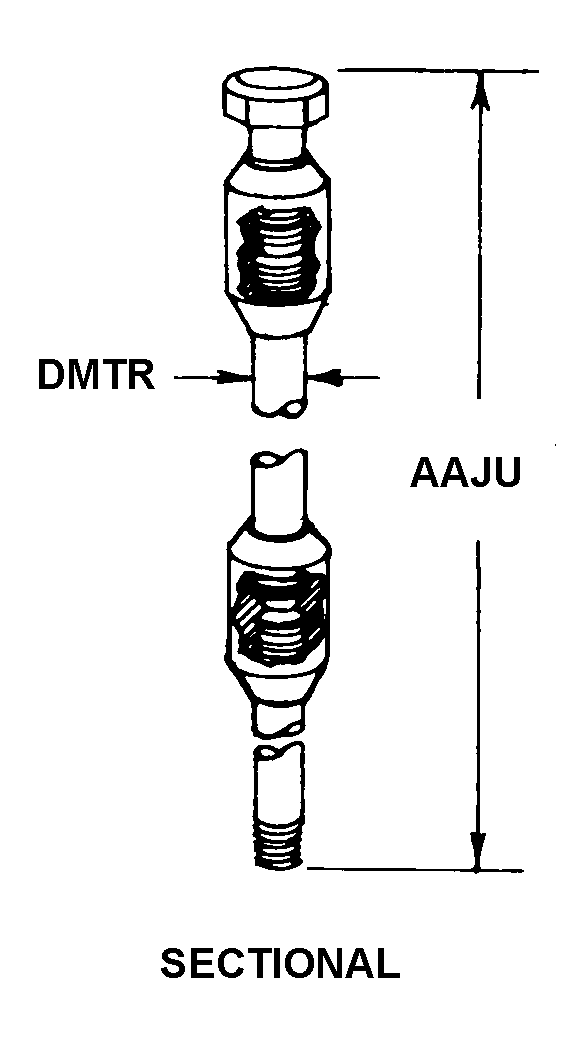

SECTIONAL
Cross Reference | NSN 5975-00-518-4552
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-R-11461 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 17-02031-01 | 8X691 | SIERRA NEVADA CORPORATION |
| 6253S | 56501 | THOMAS & BETTS CORPORATION |
| C54 | 82370 | VOLCANIC HEATER INCDBA VOLCANIC HEATER INC. |
Technical Data | NSN 5975-00-518-4552
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SECTIONAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | COPPER |
| OVERALL LENGTH | 72.000 INCHES |
| DIAMETER | 0.625 INCHES |
| END COUPLING METHOD | MALE THREAD TOP END |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.625-11 UNC |
| THREAD CLASS | 1A |
| SECTION QUANTITY | 2 |
| POINT SHAPE | CONICAL |
| NONDEFINITIVE SPEC/STD DATA | II TYPE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY THE GROUND WIRE ACCOMODATION,GROUNDING CABLE,AND TERMINAL DATA |
