Part Details | DUST AND MOISTURE SEAL BOOT
5975-00-581-1388 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.
Alternate Parts: TYPEBT, 8527550, 5975-00-581-1388, 00-581-1388, 5975005811388, 005811388
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-581-1388 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |

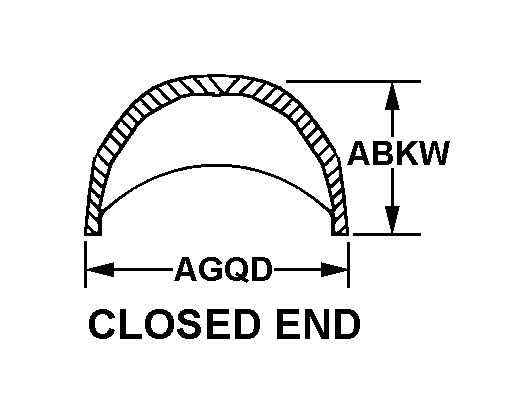

REFERENCE DRAWINGS & PICTURES
CLOSED END
Cross Reference | NSN 5975-00-581-1388
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TYPEBT | 81640 | SAFRAN ELECTRICAL & POWER USA, LLCDBA LABINAL POWER SYSYEMS |
| 8527550 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5975-00-581-1388
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLOSED END |
| OVERALL HEIGHT | 0.469 INCHES NOMINAL |
| BASE OUTSIDE DIAMETER | 0.875 INCHES NOMINAL |
| MOUNTING METHOD | |
| SPECIAL FEATURES | FREEZE RESISTANT |
